Transporting monoclonal antibodies and other biologics demands rigorous temperature control. VIP cold chain boxes for antibody transport provide extended thermal protection by combining vacuum insulated panels (VIPs) with phase change materials (PCMs) e gelo seco. Choosing the right box can safeguard product efficacy, cut waste and meet stringent regulatory requirements. This guide explains how VIP containers work, how to select the best one, and what new 2025 innovations mean for your shipments. You’ll learn practical tips, compliance advice and sustainability insights to optimize your antibody logistics.
What defines a VIP cold chain box and why it’s ideal for antibody transport. Learn how VIPs reduce heat transfer and extend hold times.
How to choose the right box for shipment duration, faixa de temperatura e tamanho da carga útil. Follow our decision framework for domestic vs. international routes.
Comparison of VIP boxes vs. pacotes de gel, PCMs and dry ice containers. Understand strengths, limitations and environmental impacts.
Best practices for safe and compliant antibody shipping. See recommended temperature bands, packaging validation and monitoring.
2025 tendências: Monitoramento de IA, sustainability and digital twins. Explore innovations shaping the cold chain market.
What Is a VIP Cold Chain Box for Antibody Transport?
VIP (vacuum insulated panel) cold chain boxes are highly insulated containers designed to maintain sensitive biologics, such as monoclonal antibodies, within strict temperature ranges during transit. VIPs use a rigid core encased in a gas tight laminate to achieve exceptionally low thermal conductivity. By evacuating air, the panels minimize convection and conduction, achieving up to ten times better insulation than traditional foams. Integrated PCMs or dry ice provide the cold source while the VIP lining reduces heat gain. Many boxes feature multi layer designs: an outer protective shell, inner VIP panels, phase change or dry ice pockets, and a payload chamber for vials or bags. This architecture allows ultra low temperatures (–20 °C a –80 °C) to be maintained for days, making VIP boxes suitable for high value antibody shipments, including antibody drug conjugates (ADCs) that require –80 °C to –20 °C storage.
How VIP Boxes Improve Temperature Control
Vacuum insulation dramatically reduces heat transfer, enabling thinner walls and larger payload volume.
PCMs or dry ice maintain the target temperature band; VIPs prolong coolant life by slowing heat ingress.
Many manufacturers offer VIP boxes paired with real time temperature sensors and GPS trackers, fornecendo visibilidade contínua.
VIP packaging is reusable and often recyclable, reducing waste compared with single use foam boxes.
| Recurso | Explicação | Benefício prático |
| Painel isolado a vácuo (VIP) | Rigid core encapsulated in gas tight film; vacuum prevents convection and drastically lowers thermal conductivity. | Holds temperatures longer with thinner walls, allowing more payload space and longer transit times. |
| Materiais de mudança de fase (PCM) | Materials that absorb/release latent heat at specific temperatures (por exemplo, paraffin or salt hydrate). Combined with VIPs to keep 2–8 °C or controlled room temperature. | Provide steady temperature and reduce risk of temperature spikes; reutilizável e ecológico. |
| Gelo seco & VIP combination | Gelo seco (–78,5 ° C.) Sublelimates; VIPs reduzem a transferência de calor, extending dry ice life. | Enables ultra low shipments (–20 °C a –80 °C) for vaccines or ADCs; caution due to CO₂ emissions. |
| Monitoramento em tempo real & GPS | IoT sensors and GPS enable automatic startup/shutdown, monitoring of temperature, shock and orientation. | Provides live visibility and alerts, ensuring compliance and reducing excursions. |
| Reutilizável & Materiais sustentáveis | Reusable PCMs and recyclable insulation reduce waste; some boxes use biodegradable liners. | Lowers environmental impact and long term costs. |
Practical Tips for Using VIP Boxes
Pre condition coolant packs: Freeze PCMs or dry ice as instructed. Pre conditioned packs maintain proper temperature from the outset.
Tight packing matters: Fill empty space with inert filler to minimize air pockets and temperature gradients.
Validar embalagem: Perform thermal qualification under worst case conditions to ensure the box maintains temperatures for the required duration.
Monitor & registro: Use sensors to monitor temperature and shock; maintain an audit trail for regulatory compliance.
Plano de requalificação: Requalify packaging when the product, route or ambient conditions change.
Estudo de caso: A European vaccine manufacturer replaced single use foam packaging with reusable PCM containers, reducing packaging waste by 70% and saving €500,000 in disposal costs. This underscores the financial and environmental benefits of sustainable cold chain solutions.

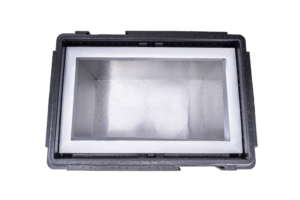

Example Illustration
Selecting the Right VIP Cold Chain Box: Principais considerações
Choosing the appropriate VIP box depends on shipment duration, faixa de temperatura necessária, payload size and regulatory requirements. Follow this decision framework to select the best solution for your antibodies.
Define the target temperature band. Most monoclonal antibodies remain stable when refrigerated at 2–8 °C, while ADCs or other biologics require ultra cold temperatures (–80 °C to –20 °C). Select PCMs or dry ice accordingly.
Assess transit time and route risk. Short domestic shipments of a few hours may only need gel packs or PCMs; for international shipments spanning days, VIP boxes with dry ice ensure longer duration. Consider potential delays and ambient temperature extremes.
Evaluate payload volume. VIP containers have thinner walls, providing more usable volume than EPS foam boxes of similar outer dimensions. Ensure your box can accommodate all vials plus coolant.
Verifique a conformidade regulatória. Verify that the packaging is validated under ICH stability guidelines and meets Good Distribution Practice (PIB) requirements for medicinal products. Temperature excursions must be documented and investigated.
Review sustainability goals. Reusable VIP boxes and PCMs reduce waste and greenhouse gas emissions compared with single use foam or all dry ice solutions. If sustainability targets are important to your organization, prioritize eco friendly materials.
Ferramenta de decisão: Which Cold Chain Box Fits Your Needs?
| Shipment characteristics | Solução recomendada | Razão |
| 2–8 ° C., transit < 24 h, doméstico | Insulated box with gel packs or PCMs | Adequate for short durations; lower cost and simpler preparation. |
| 2–8 ° C., 24–72 h, internacional | VIP box with PCMs & monitoramento em tempo real | Prolongs temperature hold; sensors ensure compliance. |
| –20 °C a –80 °C (congelado), < 48 h | Dry ice in EPS or vacuum lined box | O gelo seco mantém temperaturas ultrabaixas; simple yet effective. |
| –20 °C a –80 °C, 3–7 dias, high value antibodies/ADCs | VIP cold chain box with dry ice & monitorando | VIP panels extend dry ice life; monitoring reduces risk. |
| Ambient shipping (15–25ºC) for validated antibodies | Recyclable packaging & ClimaCell thermal liners | Some antibodies remain stable at room temperature; eliminates cold chain logistics. |
Dica: Use our interactive decision tool—input your product’s required temperature range and expected transit time to receive a recommended packaging solution. (You can embed a simple calculator or flow chart on your website to enhance user engagement.)
Exemplo do mundo real: Antibody Drug Conjugates
Antibody drug conjugates (ADCs) are powerful yet toxic therapeutics. They must be stored and transported at ultra cold temperatures (–80 °C to –20 °C). Durante o envio, robust secondary packaging such as the RoSS® shell—a stainless steel sleeve with an inner foam layer—provides a closed system to protect the contents. Para viagens mais longas, multiple shells can be loaded into a pallet sized RoSS.SHIP® container, which maintains frozen conditions for up to one week via dry ice or passive cooling. These containers can be equipped with smart tracking to monitor temperature and position in real time. Such solutions illustrate how VIP boxes and dry ice technologies work together to meet the demands of highly sensitive biologics.
Comparing VIP Boxes with Other Cold Chain Solutions
Traditional cold chain packaging options include gel packs, materiais de mudança de fase, EPS foam boxes and dry ice shippers. VIP cold chain boxes offer superior insulation and longer hold times, but each solution has its place.
Pacotes de gel & Basic Insulated Boxes
Gel packs consist of water or gel that is frozen and placed inside an insulated box. They are inexpensive and easy to use but provide limited duration and are suitable for short domestic shipments. EPS (poliestireno expandido) foam boxes are common but have thicker walls and lower insulation compared with VIPs. They are bulky, generate waste and often require large amounts of coolant.
Materiais de mudança de fase (PCM)
PCMs, such as paraffin wax or salt hydrate, melt and solidify at specific temperatures, absorbing or releasing latent heat. They offer precise temperature control for 2–8 °C or controlled room temperature shipments. PCMs são reutilizáveis, tornando-os mais sustentáveis. No entanto, without VIP insulation, their hold time is limited.
Dry Ice Shippers
Gelo seco (CO₂ sólido) sublima a –78,5 °C, making it ideal for frozen or ultra low shipments. Dry ice is widely used for vaccines and some biologics, but it emits carbon dioxide gas and cannot maintain as cold as some cryogenic therapies require. Handling requires proper ventilation and training due to the risk of asphyxiation and frostbite. Dry ice shipments are also subject to international regulations and airline restrictions.
Nitrogênio líquido (LN₂) Dry Vapor Shippers
For cryogenic therapies (por exemplo, terapias celulares e genéticas), LN₂ dry vapor shippers maintain temperatures below –150 °C. They are reusable and provide long hold times, but they are costly and not typically required for antibodies.
VIP Containers
VIP cold chain boxes combine high insulation performance with PCMs or dry ice to extend hold times. They reduce weight and volume, enable longer transit with fewer coolant replenishments and often include integrated sensors. While upfront costs are higher than simple EPS boxes, their reusability and reduced product loss justify the investment—especially for high value antibodies.
Best Practices for Safe and Compliant Antibody Shipping
Maintaining antibody stability during shipping requires more than just choosing the right box. Follow these practices to protect sensitive biologics and comply with regulations:
Temperature and Handling
Maintain 2–8 °C for most monoclonal antibodies. According to cold storage guidelines, antibodies retain functional activity when refrigerated for up to 12 meses. Some may be stored at –20 °C with glycerol, but repeated freeze thaw cycles should be avoided.
Armazenamento ultrafrio (–80 °C to –20 °C) for ADCs. Antibody drug conjugates require ultra cold conditions to maintain stability. Use validated freezers or dry ice VIP boxes.
Avoid temperature excursions. Even brief exposure outside the recommended range can degrade active ingredients. Use data loggers and monitor shipments in real time.
Minimize freeze thaw cycles. Each cycle can cause irreversible aggregation. Pack antibodies in single use aliquots and avoid frost free freezers that undergo periodic thaw cycles.
Documentation and Compliance
Siga as boas práticas de distribuição (PIB) diretrizes. GDPs require qualified equipment, validated processes and documented route assessments. Deviations must be investigated, and corrective actions implemented.
Use qualified packaging. Validate your VIP box under worst case ambient conditions, demonstrating the ability to maintain temperature for the intended duration.
Record chain of custody. Maintain an audit trail of temperature logs, handling events and custody transfers. Many IoT data loggers automatically log orientation, shock and tampering.
Treinar pessoal. Ensure staff know how to condition coolant packs, assemble the packaging and respond to alarms. Training reduces human error and ensures compliance.
Practical Scenario Checklist
Pre Shipment: Validar embalagem; freeze PCMs/dry ice; calibrate sensors; prepare documentation.
Embalagem: Insert temperature logger; load coolant packs; place antibody vials; preencher vazios; seal box.
Trânsito: Track shipment through IoT dashboard; respond to alerts; update records.
Recebendo: Immediately open container; remove temperature monitor; verify temperature range; record chain of custody data.
Post Shipment: Analyze data for excursions; requalify packaging if route or conditions change.
Regulatory and Ethical Considerations
Boas Práticas de Distribuição (PIB) and Validation
Regulatory agencies—such as the U.S. FDA, European Medicines Agency and WHO—have stringent GDP requirements for transporting medicinal products. Key pillars include quality systems, trained personnel, equipamento validado, risk management and documentation. Packages must be pre qualified, and any temperature excursions investigated. Non compliance can lead to product recalls, perdas financeiras e danos aos pacientes.
Sustentabilidade Ambiental
Cold chain logistics are resource intensive. Ambient shipping—transporting certain antibodies at room temperature—dramatically reduces emissions and waste. Cell Signaling Technology (CST) reports that ~60 % of its antibodies are shipped at ambient conditions, eliminating the need for cold chain shipping. Cold supply chains produce more than twice the greenhouse gas emissions of ambient shipping. When cold shipping is necessary, eco friendly solutions like ClimaCell thermal liners reduce emissions by 35 % por pacote. Reusable VIP boxes and recyclable insulation also align with corporate climate goals.
Ethical Handling of Toxic Biologics
Some antibody products, especially ADCs, contain cytotoxic components that pose safety risks. Secondary packaging must prevent leaks and protect handlers. The RoSS® shell, por exemplo, uses a robust stainless steel sleeve and adaptive foam to create a closed system. Tertiary containers like RoSS.SHIP® enable safe palletized transport and integrate smart tracking. Ethical handling also requires proper training, labeling and emergency plans.
2025 Trends and Future Developments in Cold Chain Logistics
Visão geral das tendências
O 2025 landscape is characterized by digital transformation, sustainability and new therapeutics. AI and IoT sensors enable predictive analytics and proactive risk management. Sustainable packaging solutions are gaining traction, with reusable containers, biodegradable insulation and phase change materials reducing waste. Regulatory frameworks are evolving, with potential Biosecure Act provisions affecting supply chain partners. The volume of temperature sensitive products is rising, particularly cell and gene therapies requiring cryogenic transport.
Resumo dos últimos avanços
AI Driven Monitoring: Modern cold chain systems use predictive analytics to forecast temperature excursions based on weather, traffic and historical data. AI alerts operators before problems occur, reduzindo a perda de produto.
Gêmeos Digitais: Digital replicas simulate supply chain processes, identifying vulnerabilities before shipments occur. This helps optimize routes and packaging configurations.
Rastreabilidade Blockchain: Immutable blockchain records improve provenance and trust. They can be integrated with IoT sensors for end to end visibility.
Materiais sustentáveis: Companies adopt reusable containers, biodegradable insulation and PCMs to reduce waste. Por exemplo, CST replaced Styrofoam with ClimaCell liners, prevenindo 24,000 ft³ of EPS from reaching landfills and cutting 60 metric tons of CO₂ emissions annually.
Ecossistemas Colaborativos: Logistics providers share hubs and combine shipments, improving efficiency and reducing carbon footprint.
Insights de mercado
The global pharmaceutical cold chain market was valued at ~USD 65 bilhão em 2025 and is projected to more than double to USD 137 bilhão por 2034. Pharmaceuticals drive growth within the broader cold chain logistics market, which is expected to reach USD 862.3 bilhão por 2032. The surge in biologics, gene therapies and vaccines fuels demand for high performance packaging, advanced monitoring and compliant infrastructure. Interrupções na cadeia de abastecimento, tariffs and geopolitical influences continue to challenge logistics, prompting investment in localised distribution hubs and predictive analytics.
Perguntas frequentes
Q1: What temperature should monoclonal antibodies be kept at during shipping?
Most antibodies remain stable when refrigerated at 2–8 °C for up to 12 meses. Avoid repeated freeze thaw cycles and store aliquots to reduce temperature swings.
Q2: Do all antibodies need cold chain shipping?
Não. Certain validated antibodies can ship at room temperature. CST reports that around 60 % of its antibodies are shipped at ambient temperatures (15–25ºC) without compromising stability. No entanto, always follow the manufacturer’s guidance.
Q3: How long can a VIP cold chain box maintain temperature?
O tempo de espera depende do isolamento, coolant type and ambient conditions. A properly conditioned VIP box with dry ice can maintain –20 °C to –80 °C for up to 7 dias, while PCMs can sustain 2–8 °C for 48–72 hours. Always validate your specific configuration.
Q4: Is dry ice safe for antibody shipments?
Dry ice is commonly used for ultra low shipments, but it emits CO₂ and may not be cold enough for some cryogenic therapies. Garanta ventilação adequada, packaging compliance and training.
Q5: What are Good Distribution Practices (GDPs) and why are they important?
GDPs are regulatory guidelines that ensure medicinal products are stored and transported under appropriate conditions to maintain quality and integrity. Compliance includes validated equipment, documented processes and trained personnel. Deviations can lead to product loss and regulatory penalties.
Resumo e recomendações
VIP cold chain boxes offer a robust solution for transporting antibodies and other biologics. Their vacuum insulated panels minimise heat transfer, allowing thinner walls and longer hold times. When combined with PCMs or dry ice, they can maintain temperatures from 2 °C down to –80 °C for multiple days. Real time sensors and GPS tracking provide visibility and compliance assurance. To choose the right box, assess your product’s temperature requirements, duração do trânsito, payload size and regulatory needs. Always validate packaging, monitor shipments, and requalify containers when conditions change. Sempre que possível, adopt sustainable practices—such as reusable VIP boxes, recycled insulation and ambient shipping for validated antibodies—to reduce environmental impact.
ACTO ACEDIVO PRÓXIMO PASSOS
Audit your antibody shipping workflows. Identify weak points such as inadequate insulation, limited monitoring or outdated SOPs.
Select and validate a VIP cold chain box. Choose based on your temperature range, transit duration and volume requirements; perform qualification tests under worst case conditions.
Implemente monitoramento em tempo real. Install IoT sensors and integrate them with a control tower to gain full visibility and proactive alerts.
Train staff and document procedures. Ensure personnel understand packaging assembly, coolant conditioning and emergency protocols.
Adopt sustainability initiatives. Use reusable packaging, opt for ambient shipping when validated and choose eco friendly insulation to meet corporate climate goals.
