Ideal Headspace in a Dry Ice Bag: 2025 مرشد

ال ideal headspace in a dry ice baز is the free volume that keeps CO₂ venting safe and your payload cold. Your target isn’t just a number; it’s a configuration that avoids pressure buildup and maintains uniform temperatures. As a starting point, many ground packouts validate 15–25% headspace by volume, لكن venting outranks headspace in all lanes, especially air.

• How the ideal headspace in a dry ice bag affects safety and temperature uniformity in real shipments.

• What percentage to use as a baseline and when to prioritize venting over volume.

• How to calculate first-hour CO₂ evolution so your vent path never chokes.

• Which bag styles change the headspace you need (valve, perforated, fold-and-clamp).

• ماذا 2025 packaging trends mean for validation, أجهزة استشعار, and smarter vents.

What is the ideal headspace in a dry ice bag—and why does it matter?

إجابة قصيرة: The ideal headspace in a dry ice bag is enough free volume to keep the vent path unobstructed while CO₂ gas escapes continuously. Regulators mandate تنفيس, non-airtight حزم; headspace supports that requirement by preventing ballooning and uneven cooling. For many insulated shippers, 15–25% headspace balances safety and efficiency, but air shipments must proof venting first.

Longer view: Dry ice expands dramatically as it sublimates. Roughly 1 lb yields ~8.8 ft³ من CO₂; 1 kg yields ~500–541 L. If vents are blocked, pressure rises and can deform liners, compromise temperature profiles, or breach compliance checks. Use headspace to protect the vent route, not to replace it.

How the ideal headspace in a dry ice bag supports safe venting

Venting controls risk; headspace enables venting. A bag with a one-way valve may work with modest slack because the valve is the designed outlet. Perforated liners need extra slack at the top so holes sit above the pellet bed. Fold-and-clamp bags require roomy necks and must never be heat-sealed. In every style, size headspace so settling ice never chokes the vent zone.

نصائح عملية يمكنك التقديم اليوم

• الشحن الجوي: Show a visible vent path; never heat-seal plain poly around dry ice. يترك 3–5 cm slack near vents.

• Perforated liners: Shake-settle pellets, keep holes above the bed, and avoid taping over perforations.

• Valve bags: Cut a small window in overwrap so the valve breathes; don’t bury it under foam walls.

Real-world case: A meal-kit team eliminated box bulging by swapping a plain liner for a valve bag and leaving the valve exposed—no change in ice mass, big improvement in acceptance checks.

How do you calculate the ideal headspace in a dry ice bag?

فكرة أساسية: Combine a percentage baseline مع first-hour gas check. Many validated ground lanes work at 15–25% headspace. Then verify that your vent path can handle early CO₂ evolution without ballooning. For planning, assume 1–2% of dry ice mass sublimates per hour at room conditions inside insulated shippers.

Step-by-step:

1. Compute headspace:
   Headspace% = (Container – Product – Ice) ÷ Container × 100%
   هدف 15-25 ٪ as a starting point for ground lanes.

2. Estimate first-hour CO₂:
   CO₂_first_hour (ft³) ≈ Ice_lb × Rate_per_hour × 8.8
   يستخدم 1–2%/h for Rate_per_hour. Keep vents clear for that volume.

3. Proof venting: Squeeze-test the loaded liner; if it balloons, reduce fill, add slack, or switch to a valve bag.

Does adding “more” headspace always improve safety?
لا. The ideal headspace in a dry ice bag prevents vent obstruction, لكن venting does the safety work. Too much void can accelerate sublimation and reduce duration. Size for a clear vent route, verify with a logger, and tune by lane.

Which bag style changes the ideal headspace in a dry ice bag?

Valve bag (vented liner): Modest headspace is fine because the valve is the outlet. Keep the valve visible; don’t tape over it.

Perforated liner: يستخدم moderate headspace so perforations sit فوق الكريات. Avoid compressing the hole zone with dunnage or tight foam fits.

Fold-and-clamp poly: Requires roomy necks و never heat-seal; choose a bag at least 1.5× the bulk ice volume to keep the fold from clogging.

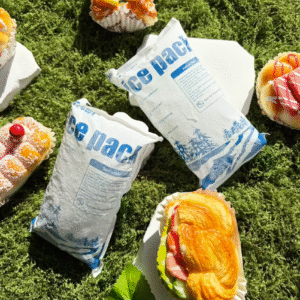

ملحوظة: “24-cell dry ice packs” are polymer sheets that freeze near 0 درجة مئوية. They aren’t solid CO₂ and don’t require UN1845 labels when used alone. Use them for chilled lanes or hybrid packouts; they occupy space that reduces headspace, so plan volume accordingly.

2025 compliance rules that shape the ideal headspace in a dry ice bag

Venting is non-negotiable: Air rules require non-airtight packages و continuous CO₂ release. Carriers explicitly warn: do not place dry ice in sealed plastic bags. Passenger limits (~2.5 kg) and workplace CO₂ limits also apply. Plan headspace to preserve the vent path and pass acceptance checks.

Quick checklist

• Mark and document: UN1845 + net weight when shipping solid CO₂.

• Keep a lid void: Preserve a small top void so gas rises and exits freely.

• التحقق: Logger traces should show stable pressure and ≤ ±2 °C gradients across payload.

2025 الاتجاهات: smarter headspace, smarter vents

نظرة عامة على الاتجاه: Teams are adopting pressure-regulated vents, AI thermal models, و validation culture that treats headspace as a functional vent-protector rather than a fixed percentage. Expect more valve liners, real-time CO₂ telemetry, and packout templates that scale by lane and season.

آخر تقدم في لمحة

• Pressure-regulated smart valves: Auto-relief under spikes; reduce liner ballooning.

• 3D-printed insulation geometries: Shape headspace to steer gas paths.

• Hybrid packouts: Polymer sheets stabilize product, small CO₂ charge extends hold.

نظرة السوق: Providers report higher pass rates when SOPs explicitly show أين the vent sits and how much slack protects it. Many lanes standardize 20-25 ٪ for biopharma and 15–20% للأطعمة المجمدة, then tune by ambient.

التعليمات

س 1: Is there a universal percentage for the ideal headspace in a dry ice bag?
لا. يستخدم 15-25 ٪ as a ground-lane baseline, لكن regulations require venting, not a fixed %. Size headspace to keep the vent path open.

Q2: Can I heat-seal my liner and rely on headspace alone?
لا. Plain poly bags must لا كن محكم. Use a valve bag or fold-and-clamp closure that breathes.

س 3: How much gas appears early in transit?
خطة على 1–2%/h sublimation initially; 1 lb ≈ 8.8 ft³ total CO₂. Confirm your vent path handles the first-hour volume.

س 4: Do polymer “dry ice packs” change headspace needs?
نعم. They take volume and reduce headspace but don’t create CO₂. Recalculate free volume when mixing with solid CO₂.

س 5: What’s different for air cargo?
Air lanes prioritize visible venting and proper UN1845 علامات. Headspace is “functional”: whatever preserves continuous gas release.

ملخص & التوصيات

The ideal headspace in a dry ice bag is the slack that protects a clear vent path while delivering uniform cooling. ابدأ في 15-25 ٪ for ground lanes, then verify with a first-hour CO₂ check and a squeeze-test. للهواء, lead with venting compliance and bag style selection. Validate seasonally and adjust for container, load, and ambient.

Action steps:

1. Calculate headspace and first-hour gas.

2. Choose the right bag style and expose vents.

3. Logger-validate pressure and temperature.

4. Standardize SOPs per lane and season.

5. Document UN1845 and train teams on vent-first closures.
