Collapsible EPP Box: 2025 Guide to Sustainable Cold Chain Packaging
When cold chain shipments fail, food spoils and vaccines lose potency. A collapsible EPP box solves both issues by combining foldable design with lightweight, insulating expanded polypropylene (PPE) espuma. These reusable containers maintain cold temperatures for up to 72–96 hours, survive hundreds of trips and support circular economy goals. In this article you’ll learn how collapsible EPP boxes work, why they outperform traditional coolers, how to maximize their benefits and what trends are shaping the market in 2025.
What makes a collapsible EPP box unique? A look at closed cell EPP foam structure, insulation values and foldable mechanisms.
Why choose EPP over EPS and VIP coolers? Side by side comparison of performance, durabilidad, costo e impacto ambiental.
How do you use and maintain collapsible EPP boxes? Practical tips for density selection, pre conditioning and cleaning.
¿Qué hay de nuevo en 2025? Tamaño del mercado, Integración de IoT, foldable designs and recycled materials.

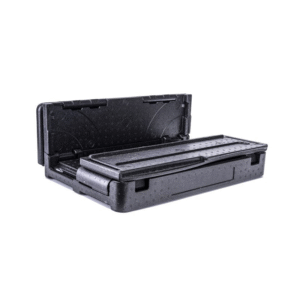

What is a Collapsible EPP Box and How Does It Work?
Collapsible EPP boxes combinar polipropileno expandido (PPE) foam walls with hinges or interlocking panels that fold flat when empty. EPP is a closed cell bead foam formed by expanding polypropylene resin. The material’s micro cells trap air, giving it a density between 15–100 kg/m³ y baja conductividad térmica. During molding, beads fuse into a rigid yet flexible shell that can compress and rebound after impact. Collapsible designs typically include:
Interlocking walls or hinges: panels that fold or nest, reducing volume by 50–70 % for return shipping.
Sealed joints: gaskets that prevent air infiltration and maintain insulation.
Secure lids: often use latches or straps to maintain a tight seal.
Optional vacuum panels and phase change materials (PCM): inserted to extend cold retention to 96 horas o más.
EPP Foam Properties: Ligero, Durable and Insulating
| Métrico | Rango típico | Significado |
| Densidad | 15–100 kg/m³ | Higher density improves mechanical strength while lower density reduces weight for air shipments. |
| Conductividad térmica | ≈0.040 W/(m · k) | Low conductivity slows heat transfer, helping containers maintain 2–8 °C for 72 h. |
| Temperature tolerance | –40 ºC a +110 °C | Allows transport of frozen seafood or warm ready to eat meals without structural degradation. |
| Absorción de agua | <0.3 % | Closed cell structure resists moisture, mould and microbial growth, keeping boxes dry and hygienic. |
| Reutilizabilidad | 500+ ciclos | High impact resistance and elastic recovery mean containers can be reused hundreds of times before replacement. |
| Reciclabilidad | 100 % | EPP is a thermoplastic that can be re melted and molded, apoyando iniciativas de economía circular. |
EPP’s closed cell structure minimizes air movement and moisture ingress. The foam rebounds after compression, giving it excellent impact resilience and allowing collapsible boxes to withstand rough handling. Because the material tolerates a wide temperature range, boxes can be used for both refrigerated (2–8 ° C) y congelado (–18 ºC) envío.
Practical Tips and User Focused Advice
Choose the right density: heavier EPP walls improve insulation and durability for high value goods; lighter densities save weight on overnight air shipments.
Pre condition your box: cool or freeze the empty box and refrigerants before loading to stabilize temperatures.
Layer refrigerants effectively: place gel packs on the bottom and top for refrigerated goods; surround frozen products with dry ice for –18 °C shipping.
Eliminate void spaces: fill gaps with insulation inserts or biodegradable padding to reduce convection.
Monitorear la temperatura: use data loggers or Bluetooth sensors to track internal conditions and receive alerts if temperatures drift.
Clean and inspect regularly: wash with neutral detergent after each use, inspect for cracks, log cycles and replace after ~500 uses.
ejemplo real: A seafood distributor replaced single use EPS coolers with EPP boxes paired with phase change materials. The new system maintained 72 hour cold retention for frozen lobsters and reduced product returns by 80 % due to better impact protection and temperature stability.
Why Choose a Collapsible EPP Box for Cold Chain Logistics?
A collapsible EPP box offers significant advantages over traditional EPS coolers and even some vacuum insulated containers. Durabilidad y reutilización are the biggest differentiators. While EPS is often discarded after a single trip, EPP boxes survive cientos de ciclos and maintain structural integrity thanks to the foam’s elastic recovery. Reusing boxes lowers total cost of ownership and reduces waste. Additional benefits include:
Longer cold retention: EPP containers maintain cold temperatures for 72–96 horas—much longer than typical EPS coolers (arriba a 24 horas).
peso ligero: EPP’s density can be as low as 15 kg/m³, making boxes easy to handle and reducing shipping costs compared with heavy rigid coolers.
Sostenibilidad: EPP es 100 % reciclable and meets Good Distribution Practice (PIB) requirements for pharmaceutical shipments. Extended hold times reduce refrigerant usage and carbon emissions.
Space saving design: Collapsible panels reduce return shipping volume by up to 70 %, cutting reverse logistics costs and warehouse space.
Comparing Collapsible EPP to EPS and VIP
| Característica | Collapsible EPP Box | EPS Cooler | Vacuum Insulated Panel (personaje) Recipiente |
| Cold retention | 72–96 h with PCM | Arriba a 24 h | 96 h – 5 días con VIP + PCM |
| Reutilizabilidad | 500+ ciclos | Typically single use | Reusable but expensive; suited for high value goods |
| Peso | Ligero (15–100 kg/m³) | Lightweight but brittle | Heavy due to rigid panels |
| Durabilidad | Alta resistencia al impacto | Prone to cracking | Durable but susceptible to puncture |
| Costo | Moderate initial cost; bajo costo por uso | Low cost but high waste | High investment; best for ultra cold shipments |
| Impacto ambiental | 100 % reciclable; apoya la economía circular | Difícil de reciclar | Recyclable panels require specialized handling |
Escenarios de aplicación
Meal kits and grocery deliveries: Collapsible EPP boxes maintain refrigerated goods at 2–8 °C for arriba a 72 horas—ideal for cross country meal kit shipments and online grocery orders.
Pharmaceutical and vaccine shipments: EPP containers paired with +4 °C PCM meet GDP guidelines and keep vaccines within 2–8 °C for 72 horas; high value biologics may use VIP hybrids for –70 °C stability.
Frozen seafood and ice cream: Combining EPP with –18 °C PCM and vacuum panels extends cold retention to 96 horas, ensuring frozen products arrive safely.
E commerce returns and reuse: Foldable EPP boxes reduce reverse logistics costs and improve the unboxing experience for customers.
Industrial components: Because of their impact resistance, collapsible EPP boxes protect delicate electronics or automotive parts during returnable logistics programs.
Consideraciones de costos y sostenibilidad
Focusing solely on unit price can be misleading. A single use EPS cooler may cost a few dollars but requires replacement after each shipment and increases refrigerant usage. Collapsible EPP boxes require a higher upfront investment but deliver a lower total cost per trip when amortized over hundreds of uses. Longer cold retention reduces the number of gel packs or dry ice required, lowering carbon emissions and freight weight. Además, EPP’s recyclability supports corporate sustainability goals and may help companies comply with emerging regulations targeting single use plastics.
Maximizing the Benefits of Collapsible EPP Boxes
Proper use and maintenance are essential to unlock the full value of collapsible EPP containers.
Packaging and Temperature Management
Pre cool boxes and refrigerants: Place empty boxes and gel packs in a refrigerator or freezer for several hours prior to loading.
Layer products appropriately: Para envíos refrigerados, pack PCM or gel packs at the bottom, then the product, followed by more refrigerant on top. Para productos congelados, surround items with dry ice or –18 °C PCM.
Minimizar el espacio de cabeza: Fill empty space with insulation inserts or biodegradable fillers to reduce convective heat transfer.
Select the right PCM: Usar +4 °C PCM for pharmaceuticals or fresh produce; choose –18 °C PCM or dry ice for frozen seafood; pair VIP panels with EPP for extreme temperatures.
Monitorear las condiciones: Data loggers and Bluetooth sensors provide real time temperature and humidity monitoring. Real time alerts enable corrective actions during transit.
Limpieza y mantenimiento
Wash after every use: Use mild detergents and warm water; EPP absorbs less than 0.3 % moisture and dries quickly.
Inspect for damage: Check lids, hinges and panels for cracks or punctures. Replace worn parts to maintain insulation.
Track cycles: Maintain a log of shipment cycles and plan for replacement after approximately 500 viajes.
Almacenar adecuadamente: Stack or nest boxes in a cool, área seca alejada de la luz solar directa. Foldable designs make storage more efficient.
Integrating Accessories and IoT
Modern cold chain logistics leverages connected devices to enhance reliability:
Registradores de datos: Small USB or wireless loggers record temperature and humidity.
Bluetooth and cellular sensors: Provide real time alerts when temperatures deviate from safe ranges.
RFID or QR codes: Enable tracking of reusable containers to ensure boxes are returned and reused.
Sistemas de refrigeración inteligentes: Innovations like the Ember Cube pair EPP shells with vacuum insulation, phase change material and refrigeration microprocessors. The cube keeps cargo at 41 ° F para hasta 72 horas and can be recharged for another cycle. It withstands 500 shipping cycles thanks to the EPP outer shell’s shock absorbing properties.
2025 Desarrollos y tendencias
Market Growth and Reusable Packaging
Lo global cold chain packaging market fue valorado en Dólar estadounidense 34.28 mil millones en 2024 y se prevé que alcance Dólar estadounidense 89.84 mil millones por 2034 con un 11.3 % Tocón. Within this, reusable cold chain packaging is expected to grow from Dólar estadounidense 4.97 mil millones en 2025 a Dólar estadounidense 9.13 mil millones por 2034 (Tocón 6.98 %). Growth drivers include the expansion of online grocery services, increased demand for temperature sensitive pharmaceuticals and sustainability mandates.
Innovations in Collapsible EPP Boxes
Extended hold times: Combining EPP with vacuum panels and advanced PCMs allows boxes to maintain cold temperatures for 96 hours or up to five days.
Foldable and modular designs: Manufacturers are introducing collapsible EPP boxes that reduce volume by 50–70 % when empty. This innovation lowers return shipping costs and encourages reuse in e commerce and meal kit deliveries.
Monitoreo habilitado para IoT: Sensors integrated into box walls send temperature and location data via Bluetooth, 4G or NB IoT networks. Real time visibility reduces risk and ensures regulatory compliance.
Use of recycled materials: Por 2025 arriba a 30 % of new EPP boxes may incorporate post consumer recycled content, apoyando iniciativas de economía circular.
Personalización y marca: Advances in molding allow custom shapes and printed branding on EPP containers, enabling pharmaceutical companies and food brands to tailor packaging for specific vials or meal portions.
Ideas del mercado
Food distribution still accounts for ~60 % of EPP box demand, while pharmaceuticals represent about 25 %. The rise of online meal kits and grocery delivery is accelerating adoption of collapsible designs. Environmental regulations targeting single use plastics are prompting companies to shift from EPS to reusable EPP. Mientras tanto, vaccine campaigns and pandemic preparedness plans require validated cold chain boxes that hold 2–8 °C for 12–72 hours, creating opportunities for hybrid EPP/VIP solutions.
Preguntas frecuentes
Q1: How long can a collapsible EPP box keep products cold?
Most collapsible EPP boxes maintain a 2–8 ° C environment for 72–96 horas when used with gel packs and properly pre conditioned. Combining EPP with vacuum panels and phase change materials can extend cold retention to five days.
Q2: Are collapsible EPP boxes environmentally friendly?
Sí. La espuma EPP es 100 % reciclable and boxes can be reused 500 times or more. Longer cold retention reduces refrigerant usage and carbon emissions.
Q3: Can collapsible EPP boxes be used for frozen shipments?
With appropriate –18 °C PCMs or dry ice, EPP boxes can keep products frozen for arriba a 48 horas. Adding vacuum panels can extend this to 96 horas.
Q4: What sizes do collapsible EPP boxes come in?
Manufacturers offer sizes from 5 L to 200 l. Custom inserts or molded cavities can secure vials, meal kits or industrial components. Foldable boxes compress to roughly half their volume for storage.
Q5: How should I clean and maintain a collapsible EPP box?
Wash with neutral detergent and warm water after each use; avoid harsh chemicals. Inspect for cracks and replace after ≈500 cycles. Almacenar en una fresca, lugar seco lejos de la luz solar directa.
Resumen y recomendaciones
Collapsible EPP boxes offer a compelling combination of thermal performance, durability and sustainability. Their closed cell foam walls maintain refrigerated temperatures for 72–96 horas, while foldable designs reduce return shipping costs by 50–70 %. Compared with single use EPS coolers, EPP boxes last for 500+ ciclos and support corporate sustainability goals through recyclability. When used with appropriate PCMs, these containers handle a wide temperature range—from chilled vaccines to frozen seafood—making them ideal for meal kits, productos farmaceuticos, and industrial components.
Próximos pasos viables
Assess your shipment profiles: Determine transit times, temperature requirements and handling conditions.
Select the right box and PCM: Choose collapsible EPP boxes with density and capacity suited to your payload. Pair with gel packs (+4 °C) o hielo seco (–18 ºC) según sea necesario.
Implementar monitoreo: Equip boxes with data loggers or IoT sensors for real time tracking and quality assurance.
Develop a maintenance schedule: Log usage cycles, clean and inspect boxes after each shipment and plan replacements after ~500 uses.
Entrena a tu equipo: Educate staff on pre conditioning, layering refrigerants and folding/unfolding procedures to maximize performance and extend box life.
