Vacuum Insulation Panel Box for Temperature Controlled Shipping: A 2025 Guía
Actualizado 30 Noviembre 2025
En 2025 the cold chain packaging industry continues to boom. Analysts estimate that the cold chain packaging market grew from about USD 29.35 mil millones en 2024 and is projected to exceed USD 55.68 mil millones por 2035. Más allá del embalaje, el global cold chain logistics market is worth around USD 436 mil millones en 2025 and could approach USD 1.36 billones por 2034. This surge is driven by e commerce’s demand for fresh foods, growing vaccine distribution and strict regulations. En este contexto, el vacuum insulation panel box for temperature controlled shipping—a lightweight container featuring ultrathin insulation—has become a gold standard tool to protect temperature sensitive goods. This guide explains what these boxes are, why they matter and how you can harness them to keep products safe.
What makes a vacuum insulation panel box special for cold chain shipping? Understand the design and science behind vacuum insulation panels and how they outperform traditional materials.
Why should you choose a vacuum insulation panel box for temperature sensitive products? Learn the advantages—including extended temperature control, thinner walls and lower weight.
What limitations should you know about? Discover the cost, fragility and environmental considerations of vacuum insulated packaging.
How can you select the right box? Get step by step guidance on matching box performance to your product, transit duration and compliance needs.
What trends will shape vacuum insulation panel boxes in 2025? Explore innovations like hybrid coolers, IoT enabled boxes and sustainable materials.
What Is a Vacuum Insulation Panel Box and How Does It Work?
How the technology works

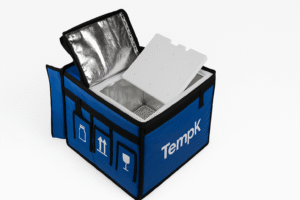

A vacuum insulation panel (personaje) box is a rigid container that uses an evacuated core to drastically slow heat transfer, mantener temperaturas estables durante días. Each panel contains a porous core—usually fumed silica—sealed in an airtight barrier film and evacuated to near vacuum. Because gases conduct heat, removing air leaves only the solid matrix to transmit energy. El thermal conductivity of VIPs is about 5 mW/m·K, making them far more efficient than expanded polystyrene (EPS) o espuma de poliuretano. Manufacturers typically sandwich multiple panels to form the box walls; the cavity houses the payload and phase change materials (PCM) como paquetes de gel o hielo seco. Cuando se utiliza con PCM, VIP boxes can maintain required temperatures for 7–10 days—two to three times longer than conventional insulation.
Componentes clave
VIP core: Made from microporous silica or glass fibres. The evacuated core provides the low thermal conductivity.
Película de barrera: A multi layer laminate of aluminium foil and polymer layers prevents gas ingress. Reflective surfaces also limit radiant heat transfer.
Estructura de soporte: The vacuum draws the panel inward; to prevent collapse, manufacturers insert spacers or use aerogel enhanced cores.
capa exterior: A rigid case (often corrugated plastic or fibreboard) protects the VIP panels from punctures and moisture.
Materiales de cambio de fase: paquetes de gel, dry ice or PCMs absorb and release latent heat to control internal temperatures.
This combination creates a ligero, high performance box ideal for vaccine shipments, biológicos, fresh food and specialty chemicals.
Why vacuum insulation panels are a game changer
Researchers and packaging experts consider VIP technology a breakthrough. The ColdChainPacking report notes that VIPs use a vacuum sealed core to minimize heat transfer; the reduced conductivity allows thinner insulation layers, smaller packaging size and lighter weight. These advantages are critical for express deliveries or air cargo where space and weight affect cost. Sofrigam’s analysis highlights that VIP boxes maintain the required temperature range for 7–10 days, que es two to three times longer than the best conventional insulation. Because the walls are thinner, you can increase the usable volume or reduce coolant weight.
Common questions about VIPs
| Pregunta | Respuesta |
| What temperatures can a VIP box hold? | Depending on the PCM, VIP boxes can maintain 2–8 °C for pharmaceuticals, -18 °C para alimentos congelados o incluso ultra cold conditions with dry ice. |
| How long does a VIP box last? | Standard VIP packaging maintains temperature for 7–10 days. Hybrid designs using thinner PCMs can hold precise temperatures for 72 horas o más. |
| ¿Los palcos VIP son reutilizables?? | Many VIP containers are reutilizable; reuse depends on protective casings and cleaning protocols. Los analistas de mercado predicen reusable cold chain packaging will grow from USD 4.97 mil millones en 2025 a USD 9.13 mil millones por 2034, with VIP containers forming a key segment. |
| Are they sustainable? | VIPs offer energy savings but have an environmental footprint due to pyrogenic silica production. A 2019 study noted VIPs have high greenhouse potential, but recycling the silica core could reduce ecological cost by 95 %. Projects like Peli BioThermal’s circular economy initiative aim to reuse VIP cores and cut carbon emissions. |
Practical insight: sample calculation
Imagine shipping a 5 litre vaccine batch requiring 2–8 °C for five days. Usando un 20 El enfriador de EPS de mm requiere aproximadamente 4 kg de paquetes de gel y hojas solamente 6 litros de volumen interno. A VIP box of the same external size uses 10 mm panels and needs just 1.5 kg de PCM. You gain extra volume, reduce shipping weight and extend hold time.
Caso del mundo real
Caso real: A pharmaceutical firm shipping biologics uses a reusable smart box with VIP panels and PCMs eso mantiene entre 2 y 8 °C durante 72 horas mientras transmite datos de temperatura y ubicación en vivo. If the lid opens or temperatures drift, automated alerts trigger corrective actions, preserving the high value cargo.
Why Choose a Vacuum Insulation Panel Box for Temperature Controlled Shipping?
Advantages over conventional insulation
The main advantage of a vacuum insulation panel box is superior thermal performance with lower material thickness, translating into longer hold times and lighter shipments. Sofrigam notes that VIPs offer a thermal conductivity of about 5 mW/m·K, far below materials like EPS or polyurethane foam. This allows the wall thickness to be reduced while still achieving 7–10 days of temperature maintenance. Because of the thinner walls, you gain more internal space or can reduce the amount of coolant. ColdChainPacking emphasises that VIPs outperform traditional materials by enabling thinner insulation layers and reducing overall packaging size and weight, which is particularly beneficial when space is limited or weight reduction is a priority.
Other advantages include:
Duración extendida: VIP boxes maintain temperature ranges far longer than standard foam coolers. This allows shipments over longer routes or longer dwell times during customs clearance.
Eficiencia espacial: Las paredes más delgadas liberan volumen interno, enabling you to ship more product per container or use smaller containers for the same payload.
Reducción de peso: Lower insulation thickness and the ability to reduce PCM mass means less total weight. This directly lowers airfreight costs.
Consistencia: VIPs create more stable temperature profiles with minimal fluctuations. ColdChainPacking notes that combining VIPs with phase change materials provides a powerful solution for maintaining consistent temperatures during long transportation periods.
High value protection: Many life saving vaccines, biologics and specialty foods require strict temperature ranges. VIP boxes provide the reliability needed for high value shipments.
Drawbacks and limitations
A pesar de sus beneficios, VIP boxes also have challenges:
Fragilidad: Sofrigam points out that VIP panels are fragile and usually need another material (like PU foam) for protection, which increases total thickness.
Costo: Even though costs are decreasing, VIPs remain Más caro than traditional insulations.
Restricciones de forma: Panels are not perfectly square or easily cut, complicating box assembly and creating potential thermal bridges.
Peso: VIP cores have a density of 150–250 kg/m³, making them heavier than some foams.
Impacto ambiental: Producing pyrogenic silica requires significant energy and results in high embodied carbon. Recycling can mitigate this.
Comparative summary
| Material aislante | Conductividad térmica (aprox.) | Espesor de pared para 72 espera | Costo & complejidad | Importancia práctica |
| Poliestireno expandido (EPS) | ~36 mW/m·K (8 times higher than VIP) | 30–40 milímetros | Bajo costo; fácil de cortar | Affordable but heavy and bulky; hold time limited to ~2–3 days. |
| Espuma de poliuretano (Puro) | ~22 mW/m·K | 25–35mm | Costo moderado; rigidez moderada | Better insulation than EPS but still thicker and heavier than VIP; tiempo de espera ~3–5 días. |
| Panel de aislamiento al vacío (personaje) | ≈5mW/m·K | 10–15mm (50–70 % disolvente) | Alto costo; frágil | Tiempo de espera extendido 7–10 días; más espacio interno; weight savings. |
(Nota: approximate values; actual performance depends on panel quality and packaging design.)
Consejos prácticos y recomendaciones.
Prioritize payload type: Use VIP boxes for high value or sensitive goods (p.ej., vacunas, biológicos, speciality foods) where the cost is justified.
Combinar con PCM: Select PCMs that match your temperature range (2–8 ° C, –20 °C o –70 °C). Pairing VIPs with appropriate PCMs ensures stable internal conditions.
Proteger contra pinchazos: Always use an outer shell (PPE, corrugated plastic or fiberboard) to shield panels from damage.
Planificar la logística de devolución: Si utiliza palcos VIP reutilizables, coordinate reverse logistics to recover boxes and maintain sustainability.
Caso del mundo real
Caso real: ColdChainPacking notes that combining vacuum insulation panels with phase change materials offers a powerful solution. The VIP reduces heat transfer and the PCM absorbs and releases thermal energy, maintaining a stable temperature environment during long transports.
How to Choose the Right Vacuum Insulation Panel Box for Your Shipment
Selecting the right VIP container is about balancing product needs, condiciones de tránsito, requisitos regulatorios y costo. Use the following framework to make your decision.
Evalúe el perfil térmico de su producto
Identificar el rango de temperatura requerido. Pharmaceuticals often need 2–8 ° C, frozen foods require –18 ºC and ultra cold biologics may need –70°C. Determine how long the product must remain within this range (hours vs days). Sofrigam reports that VIP boxes maintain range for 7–10 días; Los diseños híbridos mantienen 72 + horas with thinner PCMs.
Estimar la duración del tránsito y el entorno.
Considere la distancia de envío, Posibles retrasos y temperaturas exteriores.. Los palcos VIP pasivos se adaptan a duraciones moderadas (hasta una semana). For longer routes or extreme conditions, considerar hybrid or active packaging (p.ej., built in refrigeration).
Match PCM and coolant type
Choose PCMs or gel packs with melting points aligned to your product’s temperature band. The CNNBOX guide emphasizes that PCMs like gel packs, ice packs and dry ice play a crucial role; they absorb and release thermal energy to maintain desired temperatures. Use multiple PCM packs for longer holds.
Determinar el tamaño de la caja y la relación de carga útil
Las paredes VIP más delgadas aumentan el espacio utilizable. Calculate internal volume needed for both product and coolant. Avoid oversizing; extra air inside the box increases thermal load.
Assess regulatory and compliance requirements
Comply with international standards such as WHO guidelines for vaccine storage y Ley de modernización de la seguridad alimentaria de la FDA. Para productos farmacéuticos, Buena práctica de distribución (PIB) y buenas prácticas de fabricación (BPF) standards mandate validated packaging and real time monitoring.
Equilibrio entre costo y rendimiento
VIP boxes are more expensive upfront but can reduce losses from spoilage and may lower shipping costs due to weight savings. Considere el costo total de propiedad, including reuse cycles and reverse logistics.
Considere la sostenibilidad
Opt for designs with recyclable panels, reusable outer cases or plant based insulation. New hybrid coolers combine VIPs with thinner PCMs to maintain temperatures for 72 + hours while reducing fuel use. Projects like Peli BioThermal’s circular economy initiative show that El reciclaje de núcleos VIP puede reducir el impacto ecológico al 95 %.
Lista de verificación de autoevaluación
Use this quick self test to determine which solution suits you:
What is my product’s required temperature range? – 2–8 °C, –18 °C o –70 °C.
How long will my shipment be in transit? - <48 h (consider standard VIP), 48–72 h (VIP híbrido), >72 h (hybrid or active packaging).
How valuable is the product? – Low to moderate (use cost effective EPS or PUR), Alto (invest in VIP or hybrid solution).
Do I have reverse logistics for reusables? – Yes (choose reusable VIP box), No (select single use but plan disposal or recycling).
What regulations apply? - Alimento (FSMA), productos farmaceuticos (OMS, BPM/PIB).
Latest Innovations and Trends in Vacuum Insulation Panel Boxes (2025)
La industria de la cadena de frío está evolucionando rápidamente. Research and market analyses highlight several innovations shaping VIP packaging.
Refrigeradores híbridos con PCM más delgados
CNNBOX reports that hybrid coolers combining vacuum insulation with thinner phase change materials can maintain precise temperatures for more than 72 hours while reducing fuel use. These designs minimize energy consumption by leveraging high insulation efficiency and optimizing PCM mass.
Embalaje inteligente habilitado para IoT
El embalaje inteligente integra sensores, registradores de datos y conectividad. The Tempk knowledge article notes that reusable containers with sensors, vacuum insulated panels and phase change materials can maintain precise temperatures for 48–72 hours while transmitting live data, reducir la dependencia del hielo seco y los paquetes de gel. These smart shippers send real time alerts when temperatures deviate, permitiendo acciones correctivas rápidas.
Multi temperature zone containers
Los contenedores avanzados dividen el interior en compartimentos con diferentes zonas de temperatura., enabling mixed loads (p.ej., pescado congelado y verduras frescas). Tempk highlights that these multi zone shippers rely on vacuum insulation panels and smart monitoring to manage varied thermal requirements simultaneously.
Reusable and circular packaging models
Analysts forecast strong growth for reusable cold chain packaging: the market is projected to expand from Dólar estadounidense 4.97 mil millones en 2025 a USD 9.13 mil millones por 2034. Reusable VIP containers reduce waste and offer long term cost benefits. Closed loop systems like RPC pooling emphasise return, limpieza y redistribución de contenedores. Companies are experimenting with biodegradable and plant based PCMs and bio foam liners to reduce carbon footprints.
Cajas inteligentes autorefrigeradas
Emerging products such as battery powered, self refrigerated containers (p.ej., Cubo de ascuas) eliminar la necesidad de paquetes de gel o hielo seco. These boxes maintain 2–8 °C for 48–72 hours, include VIP insulation and sensors, and transmit data for tracking.
Integration of AI and blockchain
La inteligencia artificial analiza los datos de los sensores para predecir fallas en los equipos, optimizar rutas y reducir retrasos. Blockchain provides tamper proof logs of temperature data and handling events, mejorar el cumplimiento y la auditabilidad.
Crecimiento y segmentación del mercado.
Market studies suggest that VIP containers will capture a larger share of the cold chain packaging segment. Contenedores reutilizables (incluyendo transportistas VIP) dominar la participación del tipo de producto en 2024 and will continue to grow. América del Norte lidera la adopción, but Asia Pacific shows significant growth potential.
Resumen de tendencias
Materiales sostenibles: Bio based insulation, recycled plastics and biodegradable PCMs.
Sensores inteligentes: Temperatura en tiempo real, location and impact monitoring.
Diseños modulares: Pre tested combinations of PCMs and insulation for quick customization.
Presión regulatoria: Stricter guidelines require validated processes, seguimiento y documentación.
Economía circular: Recycling VIP cores and using reusable systems to reduce carbon emissions.
Preguntas frecuentes
Q1: What is a vacuum insulation panel box?
A VIP box is a shipping container whose walls incorporate thin vacuum sealed panels made of microporous silica. Removing air drastically lowers thermal conductivity, allowing the box to maintain temperature for many days.
Q2: How long can a vacuum insulation panel box keep goods cold?
Standard VIP boxes maintain temperature for 7–10 días. Los diseños híbridos con PCM más delgados o enfriamiento activo mantienen temperaturas precisas para 72 + horas.
Q3: Are vacuum insulation panel boxes reusable?
Many VIP boxes are designed for reuse. Se prevé que el mercado de envases reutilizables para la cadena de frío crezca de Dólar estadounidense 4.97 mil millones en 2025 a USD 9.13 mil millones por 2034, reflecting a shift toward reusability.
Q4: What are the main disadvantages?
Los paneles VIP son frágiles, caro y más pesado que algunas espumas. They also require careful handling and proper disposal or recycling to mitigate environmental impacts.
Q5: ¿Cómo elijo entre paquete VIP pasivo e híbrido??
Considerar la duración, product value and regulatory requirements. Passive VIP boxes work for shipments up to one week; hybrid or active boxes are better for longer routes or high value goods needing real time monitoring.
Resumen y recomendaciones
In an era of booming cold chain logistics, vacuum insulation panel boxes offer unmatched thermal performance, keeping pharmaceuticals, biologics and fresh foods within strict temperature ranges for days. Su baja conductividad térmica (~5 mW/m·K) y paredes delgadas entregar 7–10 days of hold time, while reducing weight and increasing payload volume. Sin embargo, costo, fragility and environmental footprint must be weighed. To select the right solution, define your temperature range, estimate transit duration, match PCMs, consider regulation, balance cost y factor sustainability. Hybrid and smart packaging are transforming the landscape, offering longer durations, live data and sustainable materials. Adopting these innovations helps reduce waste and comply with stricter regulations, protecting both products and the planet.
Próximos pasos viables
Audite sus necesidades de cadena de frío: Map out product types, temperaturas requeridas y duraciones de tránsito.
Evaluate VIP options: Compare available boxes by insulation thickness, tipo PCM, hold time and cost.
Implementar monitoreo: Equip shipments with temperature sensors and consider smart boxes for high value goods.
Plan de reutilización: Choose reusable VIP containers where reverse logistics is feasible and support recycling initiatives.
Consultar expertos: Work with a cold chain specialist to customize packaging and ensure regulatory compliance.
