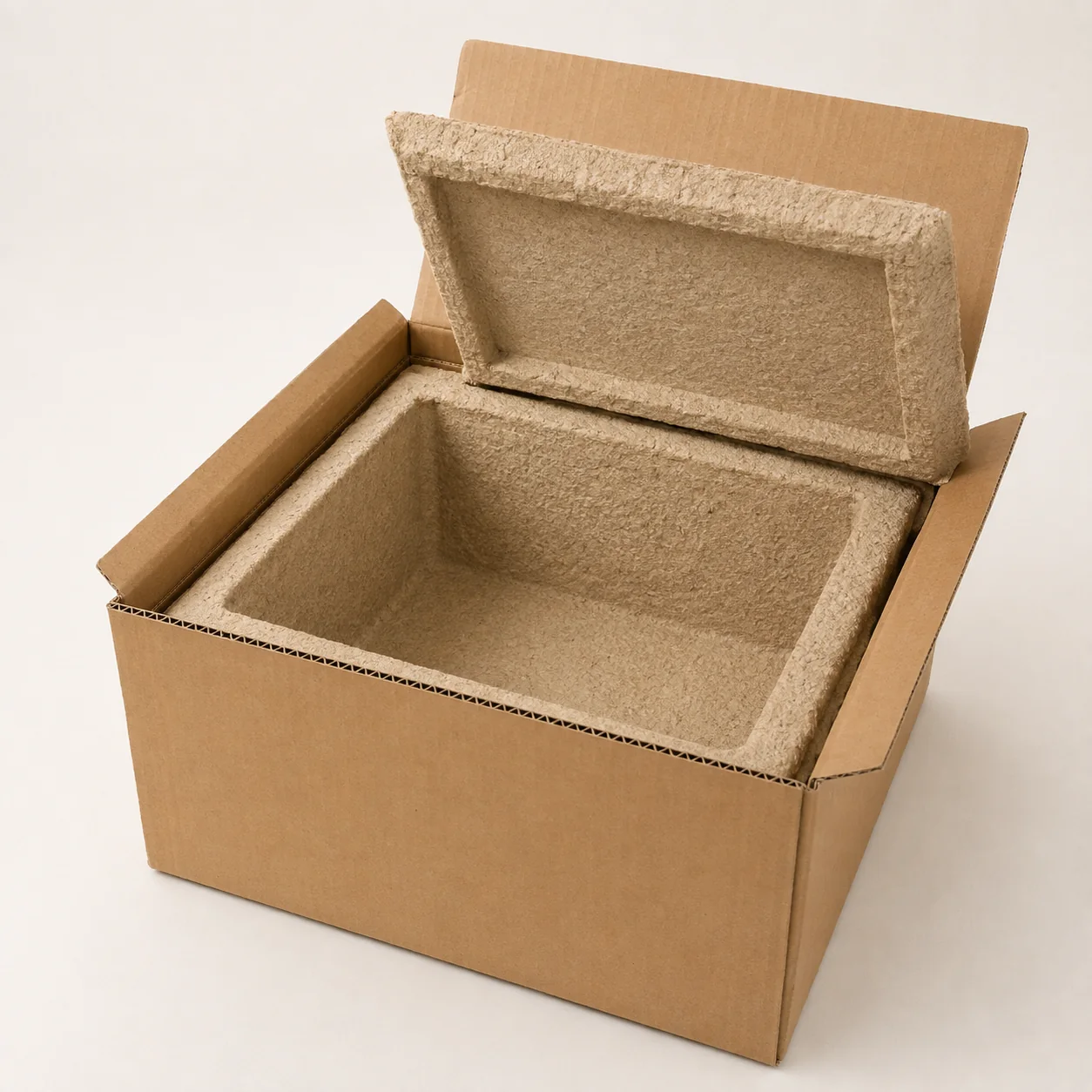

Recyclable paper-fiber insulated shipping box with molded fiber liner

Tempk corrugated insulated shipper range

Recyclable Paper-Fiber Insulated Shipping Box

A corrugated parcel shipper with removable molded paper-fiber insulation for chilled food, مجموعات الوجبات, fresh produce and temperature-sensitive e-commerce deliveries. Tempk configures the carton, fiber panels and coolant layout around the payload and route.

شكل المنتج Corrugated outer carton with removable molded paper-fiber insulation
Common planning sizes 5-25 L inner-volume parcel formats; custom dimensions available
Insulation planning 25-40 mm paper-fiber panels; final thickness matched to the route
متوافق مع المبرد عبوات جل مكيفة, PCM packs and ice bricks

A paper-fiber shipper built around the complete packout

This paper-dominant insulated shipper combines a protective corrugated carton with fitted fiber panels that can be separated after use. It gives packing teams a practical alternative to rigid foam for parcel سلسلة التبريد programs while keeping dimensions, سمك العزل, moisture control and coolant placement open for project-specific design.

Paper-dominant construction

The corrugated carton and molded fiber insulation create a paper-based format with components that are straightforward to separate after use.

Protective fitted panels

Molded fiber panels support the carton walls, cushion the payload area and help reduce open thermal gaps around the lid and corners.

Flexible thermal design

سمك اللوحة, internal volume and coolant placement can be adjusted instead of forcing different products into one fixed packout.

Practical packing workflow

Removable panels, a separate lid and a familiar corrugated closure make the system easy to stage and pack on parcel fulfillment lines.

Custom print and sizing

يمكن أن تتطابق Tempk مع أبعاد الكرتون, board strength, printing and internal components to the buyer's payload and shipping process.

إرشادات التخلص الواضحة

Project-specific material and disposal marks can help recipients separate clean, dry paper components according to local collection rules.

تفاصيل المنتج

ماركة Tempk
اسم المنتج Recyclable Paper-Fiber Insulated Shipping Box
Outer container Corrugated kraft shipping carton; board grade selected for payload weight and handling conditions
العزل Removable molded paper-fiber side panels, base and lid
Typical inner-volume planning 5-25 L parcel formats; الأصغر, larger and dimension-specific designs are available
Typical insulation thickness 25-40 mm planning range; final thickness is confirmed against the route and packout
Temperature programs Commonly configured for chilled 2-8°C or 0-10°C programs; frozen use requires a route-specific coolant and material review
Transit design target 24-48 hour parcel routes are a common starting point; the complete packout determines actual performance
خيارات المبرد عبوات جل مكيفة, PCM packs and ice bricks; dry ice only after reviewing material compatibility, تنفيس, قواعد وضع العلامات والناقل
مراقبة الرطوبة Optional inner liner and absorbent pad for condensation, meltwater or liquid payload risks
إنهاء Tape-sealed corrugated carton with route-specific handling labels
التخصيص الأبعاد الداخلية والخارجية, سمك اللوحة, board grade, الطباعة, المقسمات, coolant layout and packing quantity
نهاية الحياة Separate clean, dry paper components; actual recycling acceptance depends on coatings, contamination and local collection systems

حيث يناسب أفضل

Meal kits and grocery delivery

Packs chilled ingredients, prepared meals and grocery orders in a parcel format that is easy to stage at fulfillment centers.

Fresh produce and specialty food

Supports fruit, خضروات, ألبان, مخبز, confectionery and other products that need insulation from outdoor heat during delivery.

Chilled direct-to-consumer parcels

Gives subscription and e-commerce teams a customizable carton for repeat shipments with controlled coolant placement.

Regional wholesale distribution

Works for smaller B2B consignments moving between producers, مطابخ, retailers and hospitality customers.

Sustainability-led packaging programs

Helps buyers evaluate a separable paper-dominant option when they want to reduce reliance on rigid foam components.

كيفية التخطيط للحزم

Define the shipment profile

Confirm payload dimensions and weight, درجة الحرارة المستهدفة, وقت العبور, ambient exposure and delivery handoff.

Select the usable inner volume

Allow space for the product, سائل التبريد, المقسمات, liner and air-gap control before fixing the carton dimensions.

Condition payload and coolant

Pre-cool the product where appropriate and condition gel or PCM packs to the temperature required by the packout plan.

Control moisture and contact

Add a liner or absorbent pad when condensation or liquid is possible, and separate freeze-sensitive goods from direct coolant contact.

Load and close consistently

Fit all fiber panels, place coolant in the tested positions, install the lid and seal the corrugated carton with the specified tape pattern.

Validate the final system

Test with representative payload, كتلة المبرد, ambient profile and transit handling before routine or high-value shipments.

دعم التخصيص

Carton dimensions and strength

Match internal clearance, outer parcel limits, وزن الحمولة, stacking needs and the packing line.

Fiber panel design

Adjust panel thickness, كثافة, تناسب الزاوية, lid structure and component count around the route and storage plan.

Thermal packout

اختر عبوات الجل, PCM packs or ice bricks and define conditioning, quantity and placement for the target temperature window.

حماية الرطوبة

Add a removable liner, absorbent layer or product separation where condensation and leakage risks require it.

Brand and handling print

Apply Tempk-supported custom colors, شعار, توجيه التخلص, packout instructions and shipping marks to the corrugated carton.

Supply format

Plan sample runs, bulk quantities, carton packing and component staging for the buyer's warehouse workflow.

تعليمات التعامل

Store the corrugated cartons and paper-fiber insulation in a clean, dry area before packing. Keep fiber components away from direct water exposure unless the approved project specification includes suitable moisture protection.

Pre-condition the payload and coolant according to the packout plan. Install the base and side insulation completely, then position the product, سائل التبريد, dividers and any liner so that freeze-sensitive items do not touch frozen packs directly.

Fit the fiber lid without leaving large gaps and close the carton with the specified tape pattern. Apply perishable, orientation or temperature-handling labels required for the route.

The shipper provides insulation but does not create cooling by itself. Actual temperature duration depends on the full system, بما في ذلك الحمولة, كتلة المبرد, سمك اللوحة, ambient conditions and handling. Validate representative shipments before routine use.

If dry ice is being considered, confirm material compatibility, تهوية, dangerous-goods marking and carrier acceptance before use.

سمات

  • Paper-dominant corrugated and molded-fiber construction.
  • Custom inner volume, panel thickness and coolant layout.
  • Optional moisture-control liner and absorbent components.
  • Designed for validated chilled parcel packouts.

طلب دعم الحزمة

  • أبعاد الحمولة, weight and units per shipment
  • Target temperature range and acceptable product limits
  • وقت العبور, أصل, destination and seasonal ambient exposure
  • Preferred inner volume, outer parcel limits and coolant type
  • رُطُوبَة, condensation and direct-contact restrictions
  • Carton print, كمية العينة, forecast volume and delivery schedule

التعليمات

Is the complete insulated shipper recyclable?

The carton and molded fiber insulation are designed as separable paper-dominant components. Actual recycling acceptance depends on any coatings, مواد لاصقة, food contamination and the collection rules at the destination, so Tempk confirms the project-specific material specification before a recycling claim is printed.

How long can it maintain a 2-8°C temperature range?

There is no single hold time for the empty box. سمك اللوحة, كتلة الحمولة, نوع وكمية سائل التبريد, درجة حرارة البداية, ambient profile and handling all affect performance. أ 24-48 hour route is a common development starting point, followed by testing of the complete packout.

What sizes and insulation thicknesses are available?

Many parcel projects begin around 5-25 L of usable inner volume with approximately 25-40 mm fiber panels. Tempk can adjust the dimensions and panel structure after reviewing the payload, coolant and outer shipping limits.

Which coolants can be used?

عبوات جل مكيفة, PCM packs and ice bricks are common choices. The correct phase-change point, quantity and placement depend on the target temperature. Dry ice needs a separate material, تهوية, labeling and carrier review.

Can Tempk customize printing and packout components?

نعم. Tempk can support carton size and strength, fiber-panel design, printed branding, توجيه التخلص, المقسمات, بطانات, absorbent pads and a repeatable coolant layout.

Should the packout be tested before shipping?

نعم. Route testing with representative payload, سائل التبريد, ambient exposure and handling is recommended before routine use, especially for high-value, regulated or long-distance shipments.
