Temperature target depends on maturity
Hard green fruit and ready-to-eat fruit should not be packed with the same coolant logic.
Avocados Cold Chain
Cold Chain Packout for Avocados That Balances Ripeness, Blutergüsse, and Chilling Risk
Avocados are not managed like berries. The package must protect carton strength and fruit firmness while avoiding temperature choices that create chilling injury or uncontrolled ripening during longer routes.

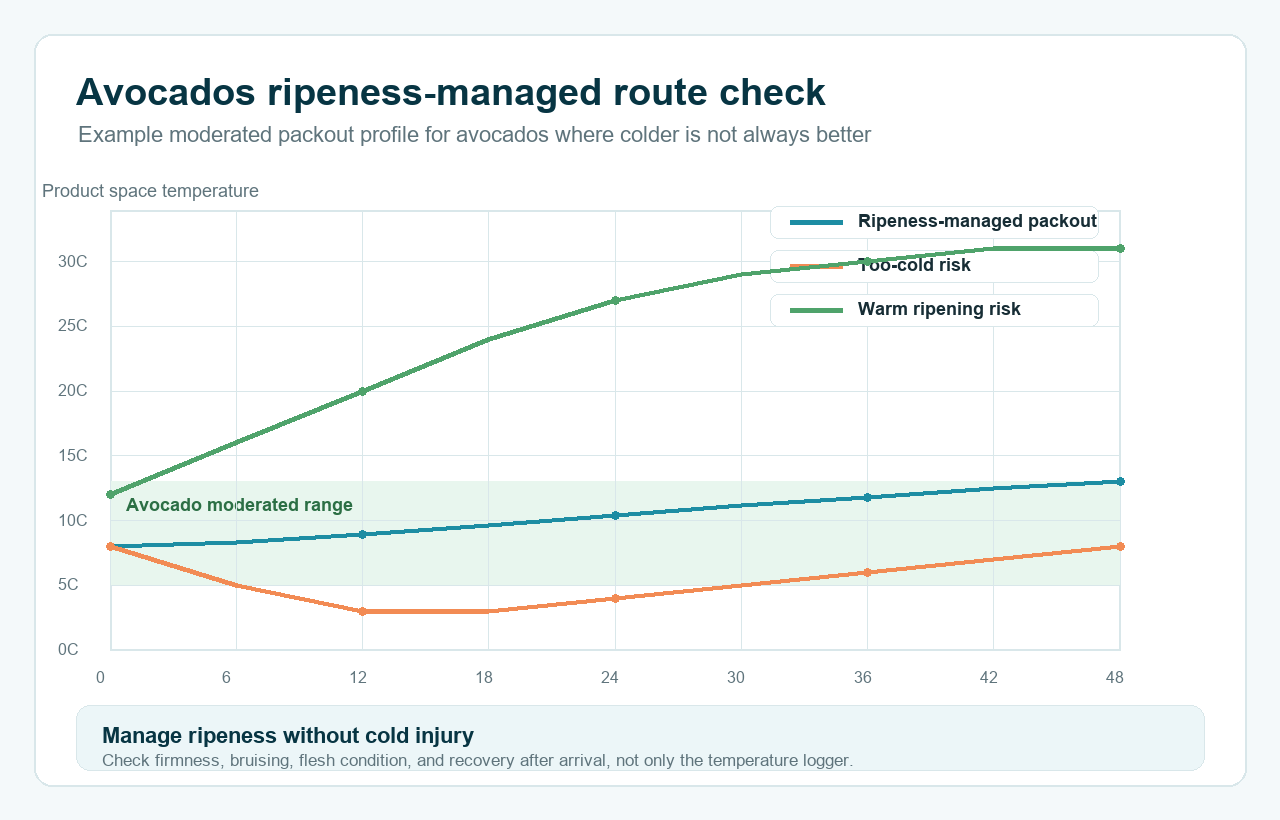

5-13 CRoute target depends on cultivar, Reife, and ripeness stage
No cold shockAvoid overcooling sensitive fruit
24-72 HCommon parcel or palletized transfer window
Firm supportCarton and dividers must prevent bruising
Product Risk
Why this product needs its own packout logic
The right package has to protect the product’s arrival quality, not only keep the logger cold. The risk points below determine the insulation choice, Kühlmittelplatzierung, pre-cooling requirement, und Erhalt von Schecks.
Too cold can create quality defects
Some avocado lanes need moderated cooling rather than near-0 C berry-style handling.
Damage can appear after ripening
Pressure marks and drops may not be obvious at receiving but show later.
Heavy fruit stresses the package
Isolierung, Kühlmittel, and dividers must support weight without crushing the fruit layer.
Route-Based Recommendation
Choose the packout by product condition, Umgebungswärme, and delivery time
These are practical starting points for sample planning. Final coolant weight and insulation thickness should be verified with the actual payload, Absender, Route, und Empfangsstandard.
| Shipment condition | Recommended Tempk package | Starting coolant direction | Kühlmittelposition | Was zu validieren ist |
|---|---|---|---|---|
| Firm fruit, short chilled route 12-24h-Route, moderate ambient, fruit still hard |
Insulated carton liner or EPS shipper, original avocado carton support, Teiler, and limited free space | Um 0.3-0.8 kg total conditioned gel packs for a small parcel, selected to temper heat rather than drive the product near freezing. | Side wall placement with thick divider; avoid direct cold contact with the fruit surface. | Arrival temperature, Festigkeit, skin marking, Kartonkompression, and delayed bruising after ripening |
| Ripening-sensitive parcel route 24-48h-Route, Ambient 22-30 C, customer expects controlled firmness |
EPP or EPS insulated box, stronger outer carton, Produktteiler, und Routenlogger | Um 0.8-1.5 kg total gel packs or a moderated PCM choice for a small parcel. Confirm the target range with the buyer's ripeness specification. | Coolant on perimeter only, separated by corrugated or foam buffer; logger near warm side. | Zellstofftemperatur, firmness change, cold marks, Blutergüsse, and carton stability |
| Hot-weather or long route 30-35 C ambient, 48-72h risk, longer depot exposure |
Thicker EPP/EPS shipper, higher insulation margin, reinforced carton, and reduced headspace | Um 1.3-2.4 kg total coolant or moderated PCM for a small parcel. Avoid excessive frozen gel if the lane has chilling-injury risk. | Perimeter layout with full fruit-facing buffer; keep coolant weight away from the fruit layer. | Spitzentemperatur, lowest pulp temperature, Kartonquetschen, ripening shift, and delayed quality check |
Coolant mass is a starting point, keine Garantie. Adjust by product temperature at packing, Nutzlastgewicht, clamshell or carton count, Versendergröße, Isolationsmaterial, Kühlmittelaufbereitung, Streckendauer, Umgebungsprofil, und Erhalt von Schecks. More ice can create cold spots, Feuchtigkeit, or pressure damage when the product support is wrong.
Eisbeutel-RechnerEstimate a starting coolant mass from payload, Kastengröße, Streckenzeit, und Umgebungstemperatur.
Kühlmittel & PCM-ReferenzVergleichen Sie Gel-Eisbeutel, PCM, Eisziegel, and conditioning behavior before testing.
Routenrisiko-CheckerCheck whether the route needs more insulation, coolant margin, or a shorter shipping window.
KühlkettenwerkzeugeOpen the full Tempk tool set for package, Kühlmittel, Route, and material planning.
Packout Structure
Build the box from the product outward
Für Produkte, inner pack control is just as important as insulation. Start with the product condition and pack format, then add coolant and insulation around it.
Recommended layer order
1. Maturity checkConfirm cultivar, Festigkeit, and ripeness target before choosing the coolant system.
2. Supported cartonKeep fruit in a stable carton or tray so heavy fruit does not shift.
3. Cushion layerUse dividers or pads where fruit can rub against carton walls or coolant buffers.
4. Coolant bufferPlace gel packs or PCM behind corrugated or foam separation.
5. Isolierter VersenderVerwenden Sie EPS, EVP, or insulated carton based on ambient range and transit time.
6. Logger-PositionMeasure product-side conditions, including the cold side and likely warm side for longer routes.
Verpackungsprozess
Prepare the product before the coolant has to work
A stronger shipper helps, but product temperature, pack stability, and coolant separation usually decide whether the delivery is accepted.
1
Confirm ripeness target first
Ask whether the shipment should arrive hard, breaker stage, or ready-to-eat. That decides the temperature strategy.
2
Use moderated cooling when needed
Für sensible Strecken, choose conditioned gel packs or PCM that reduce heat without cold shocking the product.
3
Protect heavy fruit from movement
Hohlräume füllen, support carton walls, and avoid coolant top-load on the fruit layer.
4
Check delayed quality
Review firmness, skin marks, Blutergüsse, and chilling symptoms after receiving and after a short ripening period.
When to Change the Design
Arrival signals that point to the next adjustment
If fruit ripens too fast
Check pre-shipment pulp temperature, route heat exposure, and whether insulation margin is too low.
If cold marks appear
Raise the coolant set point, increase buffer thickness, or move coolant farther from the fruit.
If bruising appears after ripening
Improve cushioning, Leerraum reduzieren, strengthen cartons, and review drop handling.
