Intención de temperaturaPlanifique alrededor 2-8 C unless the product label requires something different; protect against both heat and freezing.
Influenza Vaccines Cold Chain Packaging Solution
Influenza vaccine shipments are often seasonal, urgente, and repeated across many clinic destinations. The packaging should be easy for warehouse teams to build consistently, while keeping vaccine cartons at 2-8 C and away from direct frozen coolant contact.
What the package needs to control
Coolant ruleUse conditioned gel packs or 5 C PCM with a buffer layer. Do not place unconditioned frozen gel directly against vaccine cartons.
Enfoque en embalajeRepeatable packout, carton identity, dry labels, and fast receiving during seasonal volume spikes.
Choose the packout by route condition
| Condición de la ruta | Packaging setup | Preliminary coolant range | recibir cheque |
|---|---|---|---|
| Same-day or local courier, 4-12 h | cartón aislado, center payload tray, side coolant with buffer board. | 0.6-1.2 kg conditioned gel packs or PCM for a 1-3 carga útil. | Keep logger probe near the payload, not against the coolant. |
| Clinic parcel route, 12-24 h | EPP or insulated carton, top/side coolant, spacer layer above cartons. | 1.2-2.5 kg conditioned gel packs or PCM for a 1-4 carga útil. | Check minimum temperature, sequedad del cartón, and arrival time before storage. |
| Longer replenishment route, 24-36 h | Aislamiento más grueso, balanced coolant on sides/top, center payload cavity. | 2.5-4.0 kg conditioned gel packs or PCM, adjusted by lane and ambient. | If the route dips near 0 do, increase buffer before adding more coolant. |
Use these ranges as a starting point for packaging review. Confirm the final coolant mass with the product label, tamaño del listón, duración de la ruta, perfil ambiental, and a qualified temperature logger test.
How Tempk would build the shipment
Design for repeated packing
Seasonal flu routes often involve many similar shipments. Use a fixed loading pattern and clear coolant positions so warehouse teams do not improvise.
Protect cartons from frozen surfaces
Keep vaccine cartons in the center with corrugated, espuma, or molded dividers between product and coolant.
Controlar la condensación
Use dry liners or carton sleeves where paperboard and labels are important for receiving and clinic inventory checks.
Validate peak-season lanes
Test the warmest and coldest likely routes, then confirm logger placement, tiempo de recepción, and coolant remaining state.
Common failure points to prevent
The goal is not only a cold box. The receiver needs a clean, legible, documented shipment that stayed inside the required refrigerated range.
- Freeze excursion caused by unconditioned gel packs touching cartons.
- Warm arrival after long dock dwell or weekend delay.
- Wet cartons or unreadable labels from condensation.
- Inconsistent packout when seasonal order volume rises.

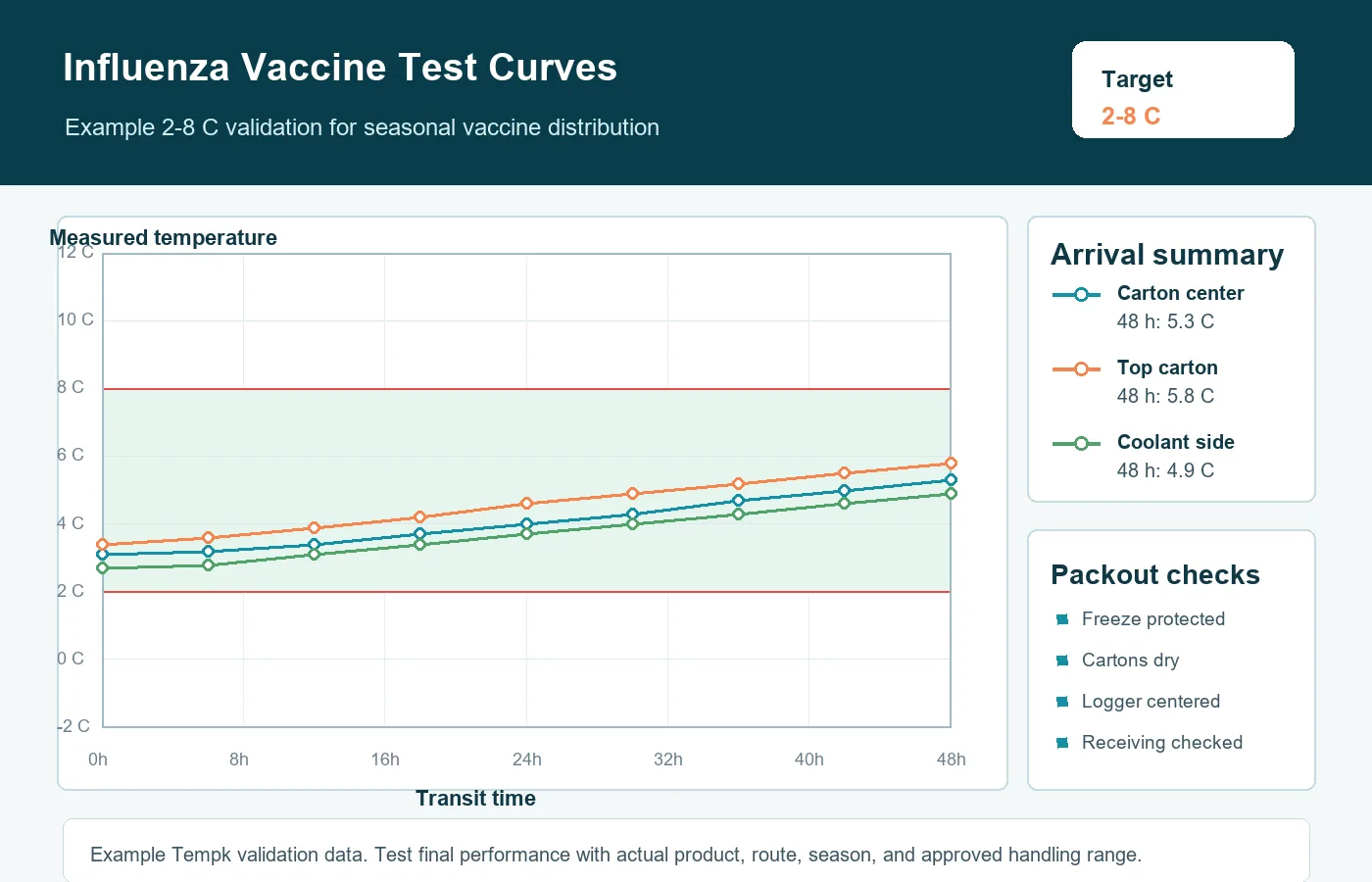

Validation curve and receiving evidence
Review the curve with the actual vaccine payload, masa refrigerante, tamaño del listón, duración de la ruta, y temporada. Para vacunas, the minimum temperature and the receiving record are as important as the end temperature.
Related pages for packout planning
Need this vaccine route checked before shipment?
Send the product label requirement, volumen de carga útil, destination type, duración de la ruta, condición ambiental, and required logger report. Tempk can help compare insulation, colocación de refrigerante, and validation steps before you ship.
