Intenção de temperaturaFollow the approved product label and build the route around the labeled refrigerated range, comumente 2-8 C where required.
GLP-1 Pens Cold Chain Packaging Solution
GLP-1 pen shipments are often high-value, small-payload parcels with demanding customer expectations. The packout should protect the labeled refrigerated range, prevent freezing, support the carton, and reduce risk from delivery dwell or direct coolant pressure.
What the package needs to control
Coolant ruleUse conditioned gel packs or PCM around a protected payload cavity; do not let frozen packs touch pen cartons.
Foco na embalagemSmall carton support, proteção de rótulo, delivery dwell risk, and clear unboxing evidence matter for DTC programs.
Choose the packout by route condition
| Condição da rota | Packaging setup | Preliminary coolant range | Placement and receiving check |
|---|---|---|---|
| Local or pharmacy courier, 4-8 h | Small EPP or insulated carton, rigid inner tray, side coolant and spacer. | 0.3-0.8 kg conditioned gel packs or PCM for a 0.5-2 Carga útil L. | Confirm carton corners, posição do registrador, and fast handoff. |
| Pacote DTC, 8-24 h | Insulated carton or EPP shipper, center cavity, side/top coolant, label/document protection. | 0.8-1.8 kg conditioned gel packs or PCM for a 0.5-3 Carga útil L. | Check minimum temperature, esmagamento de caixa, condição do rótulo, e morar na varanda. |
| Extended parcel route, 24-36 h | Isolamento mais espesso, balanced coolant, larger buffer area, stronger inner tray. | 1.8-3.2 kg conditioned gel packs or PCM, qualified by route and season. | If direct cold spots appear, revise spacer design before increasing coolant mass. |
Use these ranges as a starting point for packaging review. Confirm the final coolant mass with the approved label, contagem de carga útil, tamanho do remetente, duração da rota, perfil ambiente, posicionamento do registrador, and internal quality procedure.
How Tempk would build the shipment
Protect the small carton first
Use a rigid inner tray or center cavity so coolant and parcel handling do not crush the pen carton.
Separate coolant from product
Conditioned gel packs or PCM should surround the payload cavity while spacer layers prevent direct frozen contact.
Plan for delivery dwell
Home-delivery lanes can sit at the door. Validate the warmest expected dwell, not only the carrier transit time.
Make receiving simple
Use clear logger placement, protected labels, and a neat unboxing sequence so the receiver can review the shipment quickly.
Common failure points to prevent
For medicine parcels, a cold-feeling package is not enough. The receiver needs a documented shipment that stayed inside the required range and protected the product package.
- Freeze excursion from direct gel-pack contact.
- Warm exposure during final delivery dwell.
- Crushed pen cartons in small parcel handling.
- Unclear receiving evidence when logger placement is not defined.

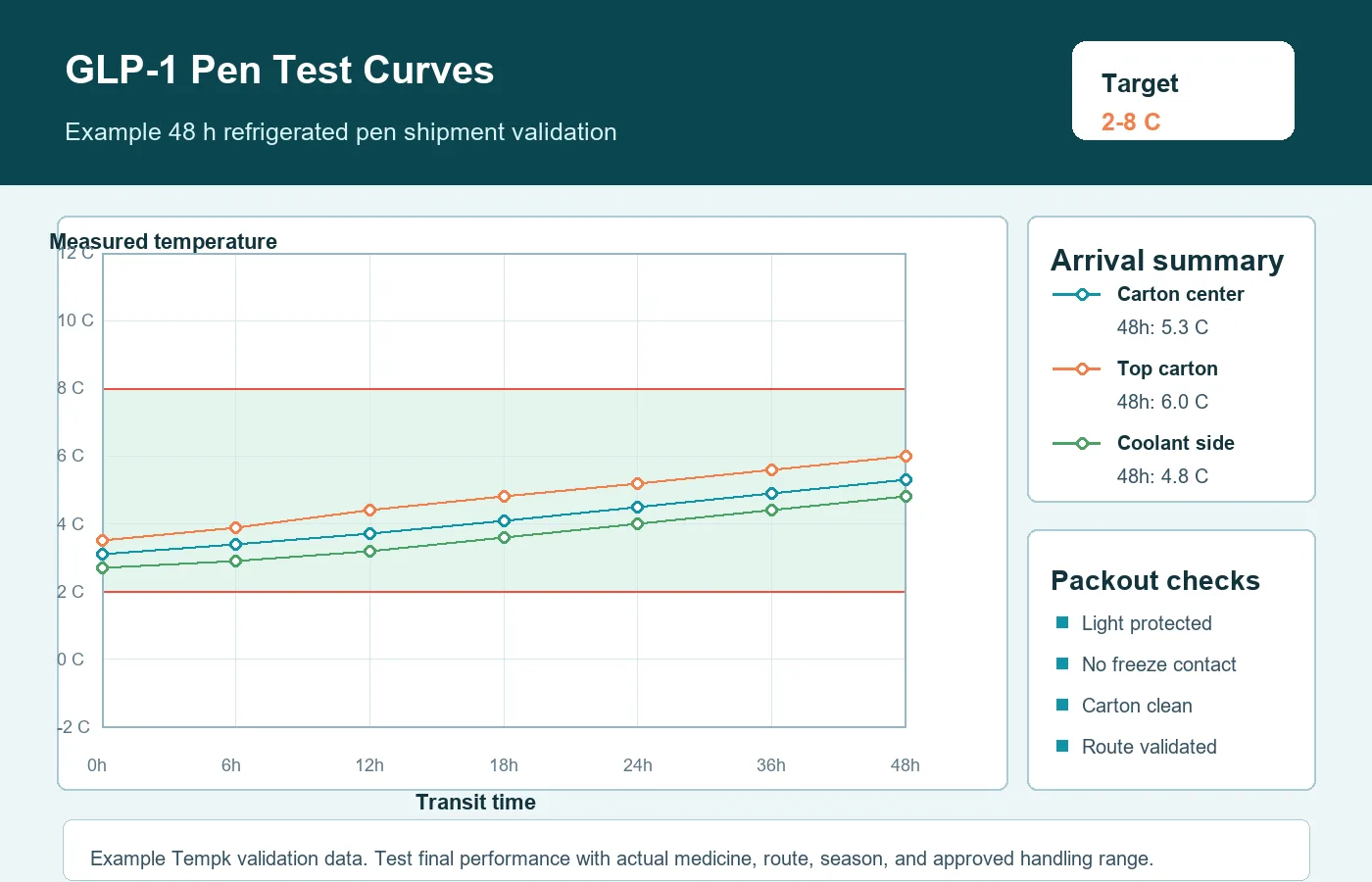

Validation curve and receiving evidence
Review the curve with the actual payload, massa de refrigerante, tamanho do remetente, duração da pista, e estação. Add receiving notes for carton condition, clareza do rótulo, movimentação de produtos, and any direct coolant contact.
Related pages for packout planning
Need this medicine route checked before shipment?
Send the product label temperature, tamanho da carga útil, dimensões da caixa, nível de serviço, condição ambiente, delivery handoff, and logger requirement. Tempk can help compare insulation, pacotes de gel condicionado, PCM, camadas de buffer, inserções, e etapas de validação.
