Warm dwell changes acceptance risk
Meals should leave production chilled and stay cold through sorting, Lieferung, und Exposition gegenüber der Haustür.
Refrigerated Meal Delivery Boxes
Cold Chain Packout for Refrigerated Meal Boxes With Chilled Holding, Tray Protection, and Clean Unboxing
Meal delivery boxes need chilled temperature control plus a customer-ready arrival. The packout should hold food-safe chilled conditions, protect trays and sauces, manage condensation, and survive doorstep dwell without wet labels or crushed packaging.
0-4 CCommon chilled food target after validation
Dry unboxingEtiketten, Ärmel, and cartons should stay presentable
12-36 HCommon local and overnight meal delivery window
No tray crushCoolant must not deform trays or lids
Product Risk
Why this parcel route needs its own packout logic
The right package has to protect the actual product and receiving decision, not only show a cold logger trace. These risks determine insulation, Kühlmittelwahl, Kühlmittelposition, inner support, and validation checks.
Wet packs look unsafe to customers
A cold product can still be rejected when labels, Ärmel, or recipe cards are wet.
Frozen packs can deform lids
Gel packs sitting directly on trays can crush lids, break seals, or force sauce leaks.
Not every item tolerates the same cold
Salate, Saucen, gekochte Mahlzeiten, and produce need separation so one item does not damage another.
Route-Based Recommendation
Choose the packout by product range, parcel exposure, and delivery time
These are practical starting points for sample planning. Final coolant mass, Isolationsdicke, and inner support should be validated with the actual payload, Route, Kurierdienst, und Empfangsstandard.
| Shipment condition | Recommended Tempk package | Starting coolant direction | Kühlmittelposition | Was zu validieren ist |
|---|---|---|---|---|
| Same-day meal delivery 8-18h-Route, ambient below 22 C, short doorstep dwell |
Insulated carton liner or compact EPS shipper, meal tray support, absorbierender Pad, Liner-Tasche, und Gelpackungen | Um 0.5-1.0 kg total gel packs for a 1-3 kg chilled meal payload. Use the calculator for actual meal weight and route time. | Side-wall or top-corner gel pack placement with divider; keep hard frozen packs off tray lids and labels. | Meal temperature, tray seal, Kondensation, Trockenheit kennzeichnen, and customer unboxing condition |
| Overnight parcel meal box 18-36h-Route, depot handling, Ambient 22-30 C |
EPS or EPP shipper, Liner-Tasche, tray divider, absorbierende Schicht, fixed coolant pockets, and stronger outer carton | Um 1.0-2.0 kg total gel packs or chilled PCM for a small meal parcel. Adjust by payload mass, meal density, und Boxvolumen. | Two side pockets or side-plus-top with corrugated buffer and moisture layer. | Warmest meal, cold contact spots, sauce leaks, tray deformation, and carton wet-out |
| Hot-weather or delay-prone route 30-35 C ambient, 36-48h risk, extended doorstep exposure |
Thicker EPS/EPP shipper, higher coolant margin, reinforced tray support, absorbierende Schicht, und Routenlogger | Um 2.0-3.5 kg total gel packs or PCM for extended small-parcel testing. More coolant must be paired with stronger tray separation. | Perimeter coolant with dividers on product-facing sides; do not stack heavy packs directly on meal trays. | Peak product temperature, condensation recovery, tray pressure, Etikettenzustand, and doorstep dwell margin |
Coolant mass is a starting point, keine Garantie. Adjust by product temperature at packing, Nutzlastgewicht, Versendergröße, Isolationsmaterial, Kühlmittelaufbereitung, Streckendauer, Umgebungsprofil, Carrier-Handling, und Erhalt von Schecks. More coolant can create freezing, pressure damage, Nassverpackung, or unsafe dry ice handling when separation and instructions are wrong.
Eisbeutel-RechnerEstimate a starting coolant mass from payload, Kastengröße, Streckenzeit, und Umgebungstemperatur.
Kühlmittel & PCM-ReferenzVergleichen Sie Gelpacks, PCM, Trockeneis, and conditioning behavior before testing.
Routenrisiko-CheckerCheck whether the parcel lane needs more insulation, coolant margin, or a shorter service level.
KühlkettenwerkzeugeOpen the full Tempk tool set for package, Kühlmittel, Route, and material planning.
Packout Structure
Build the box from the payload outward
Parcel packouts need product support, Kühlmitteltrennung, and receiving clarity before the shipper is closed. Start with the payload and acceptance criteria, then size insulation and coolant.
Recommended layer order
1. Pre-chilled mealsPack meals only after trays and sauces are at the target chilled condition.
2. Tray supportVerwenden Sie Trennwände, lid boards, or fixed rows to prevent tray crush and seal breaks.
3. Moisture layerAdd liner and absorbent material to protect labels, Ärmel, and recipe cards.
4. Coolant dividerSeparate gel packs or PCM from meal trays and fresh components.
5. Isolierter VersenderChoose insulated carton, EPS, or EPP by route time, Umgebungsbereich, und Nutzlastgewicht.
6. Receiving noteMake customer handling and refrigeration steps clear at delivery.
Verpackungsprozess
Control product condition before the parcel route begins
A stronger shipper helps, but loading condition, Kühlmitteltrennung, inner support, and receiving instructions usually decide whether the parcel is accepted.
1
Pre-chill before packing
Do not load warm meals and try to compensate with more gel packs.
2
Separate trays from coolant
Protect lids, Saucen, Etiketten, and fresh components from direct frozen contact.
3
Manage moisture
Use liner bags and absorbent layers so the unboxing stays clean.
4

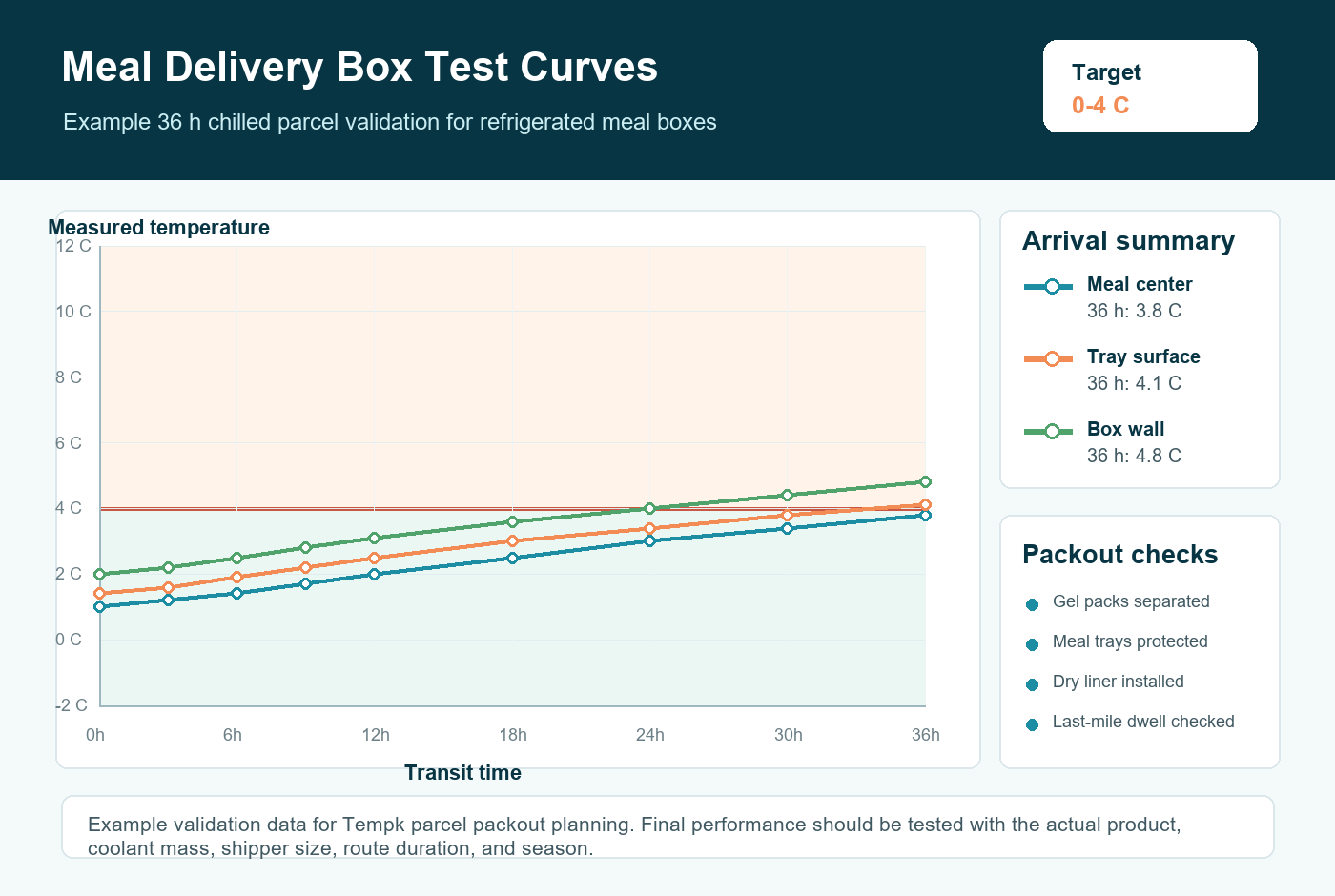

Validate doorstep dwell
Test the route with realistic delivery delay and inspect tray condition, not only the logger.
When to Change the Design
Arrival signals that point to the next adjustment
If meals arrive cold but wet
Improve liner design, saugfähiges Material, and coolant conditioning before adding more insulation.
If trays leak or lids deform
Reduce top-load pressure, move gel packs to side pockets, and add tray support.
If meals warm too early
Increase insulation margin, adjust coolant mass, reduce shipper voids, or shorten the service level.
