Use the product requirement first
Start from the product label, food safety target, or frozen receiving requirement, then select insulation and coolant.
Paket & Express Cold Chain
Parcel Cold Chain Packouts for Products Exposed to Hubs, Vans, Verzögerungen, and Customer Receiving
Parcel cold chain is different from a controlled truck lane. A useful packout must allow for sorting hubs, orientation changes, Kompression, warm last-mile dwell, Verspätungsrisiko am Wochenende, and the way the receiver actually opens and accepts the shipment.
2-8 CCommon chilled pharma parcel lane after qualification
0-4 CTypical chilled food target for meal delivery testing
-18 CFrozen DTC shipments need hard-frozen arrival planning

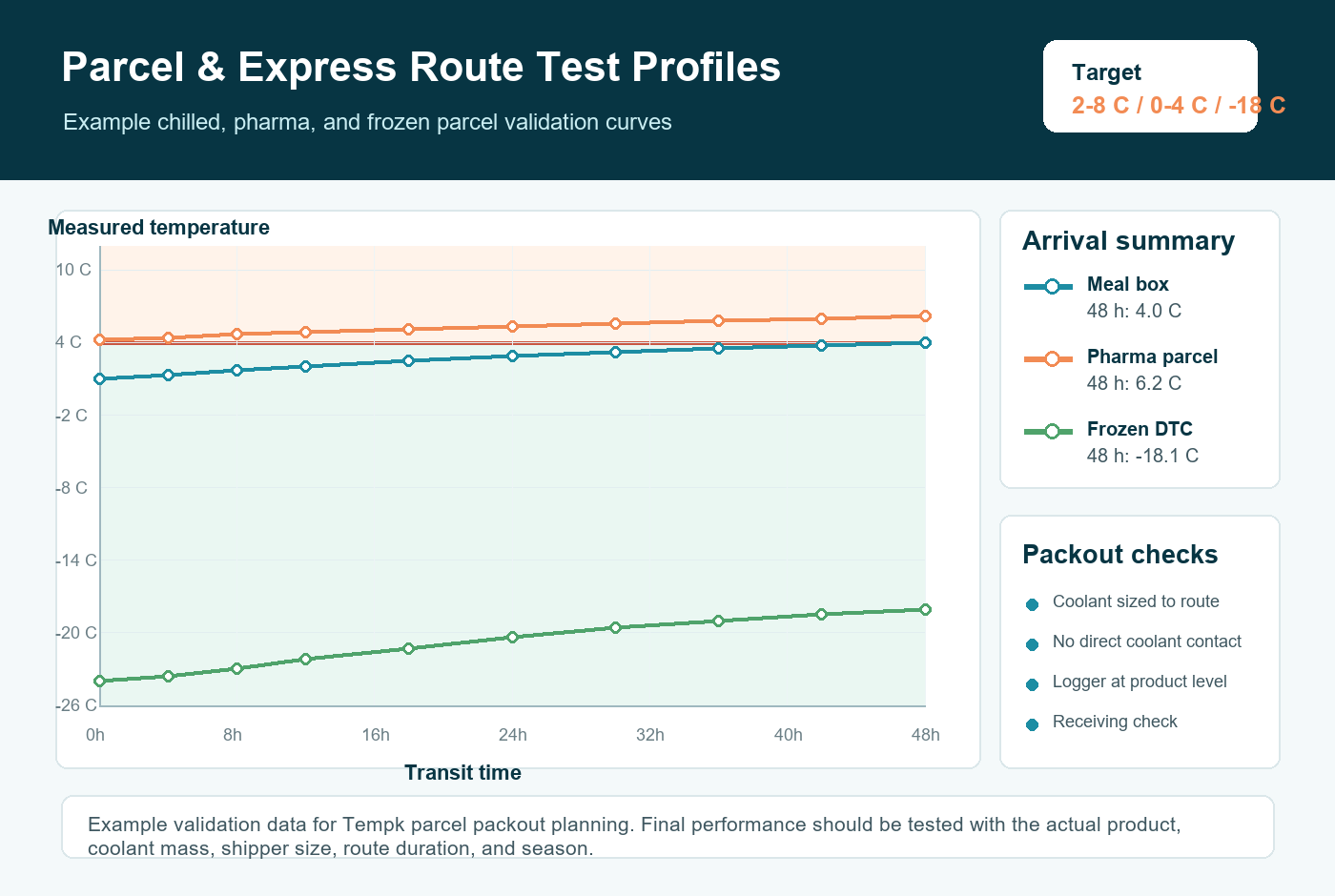

24-48 HCommon parcel validation window with delay margin
Category Decisions
Choose the packout by product risk, not only by box size
The same parcel lane can carry very different cold chain risks. Pharma parcels need a qualified temperature chamber and freeze protection, refrigerated meal boxes need clean arrival and food-safe chilling, while frozen DTC shipments need dry ice margin and customer-safe receiving. The category page should route buyers to the right product logic before they ask for a quotation.
Plan for real parcel movement
Allow for sorting, turning, Kompression, warm vehicles, and customer receiving delay.
Separate cold source from product
Conditioned PCM, Gelpackungen, or dry ice should not press directly on sensitive products unless tested.
Make acceptance easy
Temperaturaufzeichnung, Kartonzustand, Feuchtigkeit, product firmness, and remaining coolant should be clear at arrival.
High-Value Parcel Routes
Open the parcel route closest to your shipment
Each page gives product-level packout scenarios, coolant starting ranges, Platzierungsregeln, and receiving checks for a specific parcel program.
2-8 C parcels
Chilled pharma parcels
Qualified small-parcel packouts with conditioned PCM, Frostschutz, product chamber separation, und Loggerplatzierung.
View pharma parcel solution Gekühlte MahlzeitenRefrigerated meal delivery boxes
Food parcel packouts focused on chilled holding, tray protection, Kondensationskontrolle, und sauberes Auspacken.
View meal delivery solution Frozen DTCFrozen DTC shipments
Frozen parcel packouts with dry ice planning, Entlüftung, retail pack protection, and customer receiving quality.
View frozen DTC solutionRoutenplanung
Match coolant, Isolierung, and inner support to parcel risk
A parcel packout should be designed around the route’s hottest dwell point, cold-source contact risk, product pressure tolerance, and the receiver’s decision criteria.
| Versandart | Package direction | Coolant direction | Was zu überprüfen |
|---|---|---|---|
| Chilled pharma parcel 2-8 C labelled product, receiver acceptance record required |
Qualified EPS or EPP shipper, product chamber, PCM or conditioned coolant pockets, und Loggerposition | Use conditioned PCM or gel packs with dividers; avoid direct frozen contact and document the product-level trace. | Herzlicher Ausflug, freeze exposure, Kartonquetschen, Platzierung des Loggers, und Empfängerverzögerung |
| Refrigerated meal box Chilled ready meals, Saucen, produzieren, and customer unboxing |
Insulated carton or EPS/EPP shipper, meal tray support, absorbierende Schicht, Liner, and coolant separation | Use gel packs or PCM sized for chilled food, with coolant away from delicate trays and labels. | Food temperature, Kondensation, tray leaks, Etikett „Wet-Out“., Kartonstärke, und vor der Haustür wohnen |
| Frozen DTC shipment Frozen consumer order, multi-item parcel, hard-frozen arrival |
EPS/EPP shipper, dry ice chamber, vented outer carton, product dividers, Liner, and logger when needed | Use dry ice or validated frozen coolant with separation and venting; leave enough remaining cold source at receipt. | Hard-frozen condition, remaining dry ice, Paketdruck, label rules, Frost, and customer handling |
Supporting Parcel Guide
Use article-level guidance for fresh food subscription boxes
Fresh food subscription boxes sit between meal kits and chilled food parcels. Keep them as a supporting guide unless the product lane becomes a high-volume solution page.
Fresh Food Subscription Boxes Cold Chain Packaging GuideFor mixed ingredients, chilled performance, Kondensation, Druckschutz, and clean customer unboxing.
Eisbeutel-RechnerEstimate a starting gel pack mass for chilled parcel routes.
TrockeneisrechnerEstimate dry ice needs for frozen DTC parcel planning.
Useful Internal Links
Finalize parcel packouts with tools and package options
Kühlmittel & PCM-ReferenzVergleichen Sie Gelpacks, PCM, Trockeneis, and conditioning behavior before testing.
Routenrisiko-CheckerCheck whether the parcel lane needs more insulation, coolant margin, or a shorter service level.
Gel-KühlakkuReview coolant options for chilled meal and food parcel routes.
EPP-IsolierboxUse when parcels need stronger insulation, reusable structure, or higher-value payload protection.
IsolierkartonUse for parcel programs that need insulated carton structure and lighter shipper formats.
KühlkettenwerkzeugeOpen Tempk tools for coolant, Route, Isolierung, and package planning.
Need a parcel packout matched to your lane?
Share product type, erforderlichen Temperaturbereich, Nutzlastgewicht, Versendergröße, courier service level, Streckendauer, Umgebungsbereich, und Empfängerprüfungen. Tempk can help choose insulation, Kühlmittelanordnung, Trenner, Liner, und Validierungsschritte.
Request a parcel packout review
