How to Specify a Foam-Lined Insulated Box

How to Specify a Foam-Lined Insulated Box

The right foam-lined insulated box is the one whose evidence and operating instructions match the product, payload, route, season, and receiving reality. A strong procurement process therefore starts with requirements, converts them into a packout, tests the packout under defined conditions, and controls it after launch. This article combines the thermal, operational, supplier, and quality decisions needed for chilled, frozen, or moderately temperature-sensitive food, healthcare, and specialty products without treating insulation as a universal guarantee.

Write a requirement that a supplier can actually answer

A useful requirement names the product, approved condition, payload range, route, maximum operational window, seasonal exposure, receiving process, and consequence of failure. It also states what the packaging must not be expected to do. For this application, a foam lining slows heat transfer but does not create a defined temperature range without a suitable coolant and packout design. That sentence prevents scope drift and makes missing controls visible before quotations are compared.

The requirement should distinguish fixed inputs from variables. Fixed inputs may include external-size limits, a regulated inner package, a product carton, or a destination procedure. Variables may include insulation type, coolant arrangement, payload insert, closure, outer carton, and monitoring plan. Allowing suppliers to propose alternatives can improve the design, but each alternative should be assessed against the same acceptance criteria.

The useful thermal window depends on foam material, geometry, joints, coolant, payload, starting temperatures, ambient exposure, and opening events. Record the source and owner of that product requirement. A procurement team should not create a temperature band merely to make supplier comparison easier.

What product or product family will be shipped, and who owns the stability decision?

What are the minimum and maximum payloads, including physical dimensions and starting condition?

What is the full packing-to-storage duration, including contingency and receiving delay?

What hot, cold, mechanical, moisture, hygiene, and regulatory exposures can occur?

What evidence, operating instructions, production controls, and post-launch support are required?

Choose materials after the route and payload are known

Start with the dominant constraint. A one-way express shipment may prioritize low mass, parcel durability, and simple packing. A reusable hospital or distributor loop may prioritize impact resistance, cleanability, replaceable components, and return efficiency. An export biotech lane may prioritize a long contingency window, documentation space, dry-ice compatibility, or high insulation efficiency within an airline size limit. The architecture follows the constraint.

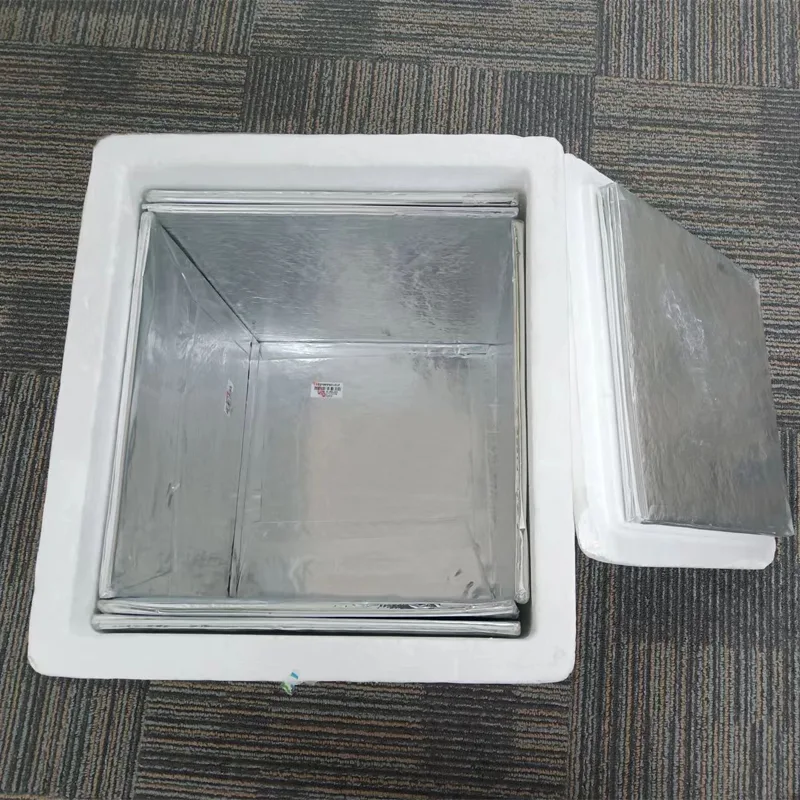

Foam-lined corrugated boxes can be practical for many single-use routes. Molded EPS provides shaped insulation at relatively low mass. EPP can support repeated handling where the operating model justifies return and inspection. Panel systems can support custom dimensions. VIP-based designs can save insulation thickness but require careful edge, puncture, aging, and quality controls. No material choice removes the need to test the finished packout.

Geometry should be reviewed alongside freight. More insulation and coolant can increase external dimensions while reducing payload space. A smaller high-performance solution may lower dimensional cost, but it may add material complexity. A larger simple solution may be easier to pack but expensive to store and ship. Compare the entire program rather than an isolated unit price.

Control the variables that change the temperature profile

A passive system works from stored thermal energy and resistance to heat flow. Product, coolant, insulation, air space, and external exposure interact. If the product is loaded warm, the refrigerant must remove that heat before it can buffer the route. If the payload is very small, it may respond quickly to local gradients. If coolant is placed directly against a sensitive item, the package can create cold damage while successfully resisting external heat.

The packout specification should identify the exact coolant or PCM, required conditioning state, quantity, placement, barriers, payload limits, void-fill method, monitor location, and closure. Components should be restrained so parcel handling cannot rearrange the tested geometry. For dry-ice applications, gas release, material compatibility, worker safety, transport-mode rules, and destination handling need dedicated review.

Consider the complete operating capacity. Conditioning freezers, staging space, packing benches, staff time, backup coolants, and dispatch cutoff rules can limit a program even when the box performs well. A design that requires more frozen components than the site can consistently prepare is not operationally robust.

Replace generic hour claims with a documented profile

Ask for evidence tied to the proposed construction and packout. The report should identify the package version, materials, dimensions, coolant, conditioning, payload, sensor locations, ambient profile, duration, opening events if any, and acceptance criteria. A standardized parcel profile can support comparison, while lane-specific profiling can improve relevance. Neither is meaningful if the supplied production unit differs from the tested design.

Review minimum and maximum payloads and hot and cold seasonal conditions where they represent different risks. Repeated-use systems may need aging or reuse assessment. Mechanical testing may be appropriate when drops, compression, vibration, or frozen-bag fragility can change the geometry or damage the product. Thermal and mechanical evidence should reflect how the package is actually handled.

The report supports a decision; it does not make the decision by itself. The quality or product owner evaluates whether the observed profile is acceptable for chilled, frozen, or moderately temperature-sensitive food, healthcare, and specialty products. When a deviation occurs, the team should compare actual shipment conditions with the qualified envelope and the product's approved excursion process.

Evaluate suppliers as controlled manufacturing partners

A polished prototype can hide weak production control. Ask how the supplier manages material identity, dimensions, tolerances, assembly, closure fit, printing, final inspection, nonconforming units, traceability, and changes. For custom products, approve a drawing, bill of materials, artwork, packout, and golden sample. Define which substitutions or process changes require notification and whether additional testing is needed.

Assess support for foam type, joint continuity, lid fit, usable volume, moisture management, impact resistance, reuse or disposal model, and complete-packout testing. The answer should show awareness of the application without crossing into unsupported product or regulatory claims. A supplier can provide construction details, samples, packout drawings, test reports, training aids, and change records. The buyer retains responsibility for product requirements, route decisions, local compliance, and quality disposition.

Commercial terms should reflect the controlled scope. Compare tooling, samples, test work, coolants, inserts, cartons, labels, minimum order expectations, lead-time assumptions, storage, replacement parts, and change management. Where a value is not yet known, state it as a question rather than inventing a number for the business case.

Foam type changes operations as well as insulation

Expanded polystyrene is widely used in one-way shippers because it can be molded into efficient shapes. Expanded polypropylene is often considered where impact resistance and reuse are priorities. Rigid polyurethane and other panel constructions can support different performance and manufacturing needs. The right choice depends on more than a single insulation value: joints, water resistance, cleaning, breakage, nesting, tooling, and end-of-life pathways all affect the business case.

This issue should be visible in the design review, operating procedure, and supplier evaluation. It is not a minor application note. It changes which components are acceptable, what staff must verify, and how a shipment is released or escalated.

Buyers should inspect the lid and corners closely. Small gaps or poorly aligned panels create preferred paths for heat flow. A thick wall with a loose lid can perform worse than a thinner but well-integrated design. Usable payload is another trade-off because thicker insulation and more coolant reduce the volume available for product.

Pilot the people and process, not only the package

A pilot should run through normal staff, equipment, cutoff times, carrier handovers, receiving locations, and data systems. Observe conditioning, picking, packing, labeling, dispatch, receipt, unpacking, monitoring, cleaning, and returns. Record confusion and workarounds. A package that only succeeds when the engineer is standing beside the operator is not ready for routine use.

Define release criteria for the pilot. These can include correct component selection, packout completion, closure integrity, scan and label quality, temperature results, package damage, receiving time, data retrieval, and staff feedback. When failures occur, separate design weakness from process deviation and route disruption before selecting a corrective action.

After launch, protect the approved state. New products, payload dimensions, suppliers, materials, coolants, artwork, carriers, destinations, seasons, or cleaning chemicals can affect performance. A change-control review decides whether documentation updates, additional testing, training, or requalification are necessary.

Failure-mode review before purchase approval

Failure mode	Question before approval	Possible control
Warm excursion	Is the route longer or hotter than the evidence?	Revise profile, capacity, service, dispatch rule, or contingency.
Cold excursion	Can coolant or winter exposure overcool the payload?	Condition coolant, add barriers, revise placement, and test cold-season risk.
Insufficient payload space	Was usable volume measured with every component installed?	Approve a packout drawing and physical fit sample.
Process variation	Can operators confuse components or skip a critical step?	Kit parts, simplify instructions, use visual controls, and audit packing.
Package damage	Can drops, compression, moisture, or reuse alter the geometry?	Strengthen shell or closure, inspect units, and include mechanical testing.
Receiving delay	Who receives, unpacks, stores, and reviews the shipment?	Confirm hours, send alerts, define instructions, and add contingency.
Unsupported claim	Does the statement identify conditions and evidence?	Request the full report or rewrite the requirement as a verification point.

The value of this review is its specificity. “Reliable packaging” is not a testable requirement, while the listed failure modes can be linked to drawings, reports, work instructions, and responsibilities. Add application-specific items where necessary, especially choosing by wall thickness or appearance while ignoring foam continuity, lid fit, payload ratio, moisture, handling, and disposal or return requirements.

The review can also prevent unnecessary overdesign. Once the dominant failure modes are controlled and evidence shows adequate margin, the team can evaluate whether excess material, coolant, freight, or process complexity can be reduced through a documented change.

A practical decision path

An online seller changes from a compact product to a taller package but keeps the same outer box. The product now touches the lid and displaces coolant, so the original thermal balance no longer applies. Begin by verifying the product requirement and mapping every minute from packing to controlled receipt. Select a candidate architecture that fits the payload and operating constraints. Create a defined packout, test it under representative conditions, and run a pilot through the real network. Review evidence with quality, logistics, operations, and procurement before approval.

If the shipment changes, return to the affected step rather than restarting blindly. A new label may require only a document review. A larger payload, different coolant, longer route, colder winter profile, or new customs process may require additional testing. This risk-based path keeps the program controlled without treating every change as identical.

Frequently asked questions

What is the first step in specifying a foam-lined insulated box?

Confirm the product requirement and map the complete operational lane. Define payload, starting condition, maximum packing-to-storage time, seasonal exposure, handovers, receiving process, and failure consequence. Those inputs create a fair basis for comparing designs and prevent the supplier from guessing what “cold” or “long duration” means.

What is the most important evidence to request?

Request a report for the proposed construction and packout that identifies components, conditioning, payload, sensor positions, ambient profile, duration, and acceptance criteria. Pair it with drawings, a bill of materials, and production controls. Evidence is strongest when the tested unit and the supplied unit are demonstrably the same.

Should procurement choose the coolant or the supplier?

The choice should be collaborative. The product owner defines the acceptable condition; packaging specialists evaluate heat flow and gradients; operations confirms conditioning capacity and packing practicality; safety and compliance teams review transport restrictions; and the supplier proposes compatible components. No single party should decide without the others' constraints.

How do I know whether customization requires retesting?

Assess whether the change can affect heat flow, coolant capacity, payload geometry, closure, mechanical durability, monitoring, or the operating process. Artwork alone may not affect thermal performance, while a dimensional, material, lid, coolant, or payload change often deserves deeper review. Document the decision under change control.

What should be included in a purchase specification?

Include approved drawings, materials, dimensions and tolerances, usable payload space, closure, component list, packout instructions, test evidence, production inspection, labeling, packaging for delivery, change notification, nonconformance handling, and any cleaning or reuse requirements. Mark assumptions that still require confirmation instead of turning them into unsupported facts.

The purchasing decision in practice

Specify a foam-lined insulated box through a controlled sequence: confirm the product requirement, map the route, select an architecture, define the packout, review evidence, qualify the supplier, pilot the operation, and protect the approved state through change control. This approach avoids unsupported guarantees while giving procurement, quality, and operations a common basis for decision-making.
