Estimate dry ice mass
Use payload weight, box size, route time, seasonal ambient temperature, and carrier limits before the first lane test.
Small-piece frozen route
Frozen Dumplings Cold Chain Packaging Solution
Frozen dumplings are small pieces with thin wrappers. A short thaw can cause clumping, wrapper cracks, deformation, and bag condensation. The packout must keep the dumplings frozen, protect bags from puncture, and separate dry ice from direct product contact.
Temperature intentPlan for frozen arrival, commonly -18 C or below for frozen dumpling routes.
Moisture controlUse a moisture barrier and separated dry ice chamber so cartons, sleeves, or bags do not get wet.
Coolant ruleDo not let dry ice or hard frozen packs press directly into loose dumpling bags. Direct pressure can crack wrappers or create hard contact marks.
Receiving checkConfirm product temperature, dry ice remaining, visible thaw, pack condition, and coolant position together.
Choose the packout by route condition

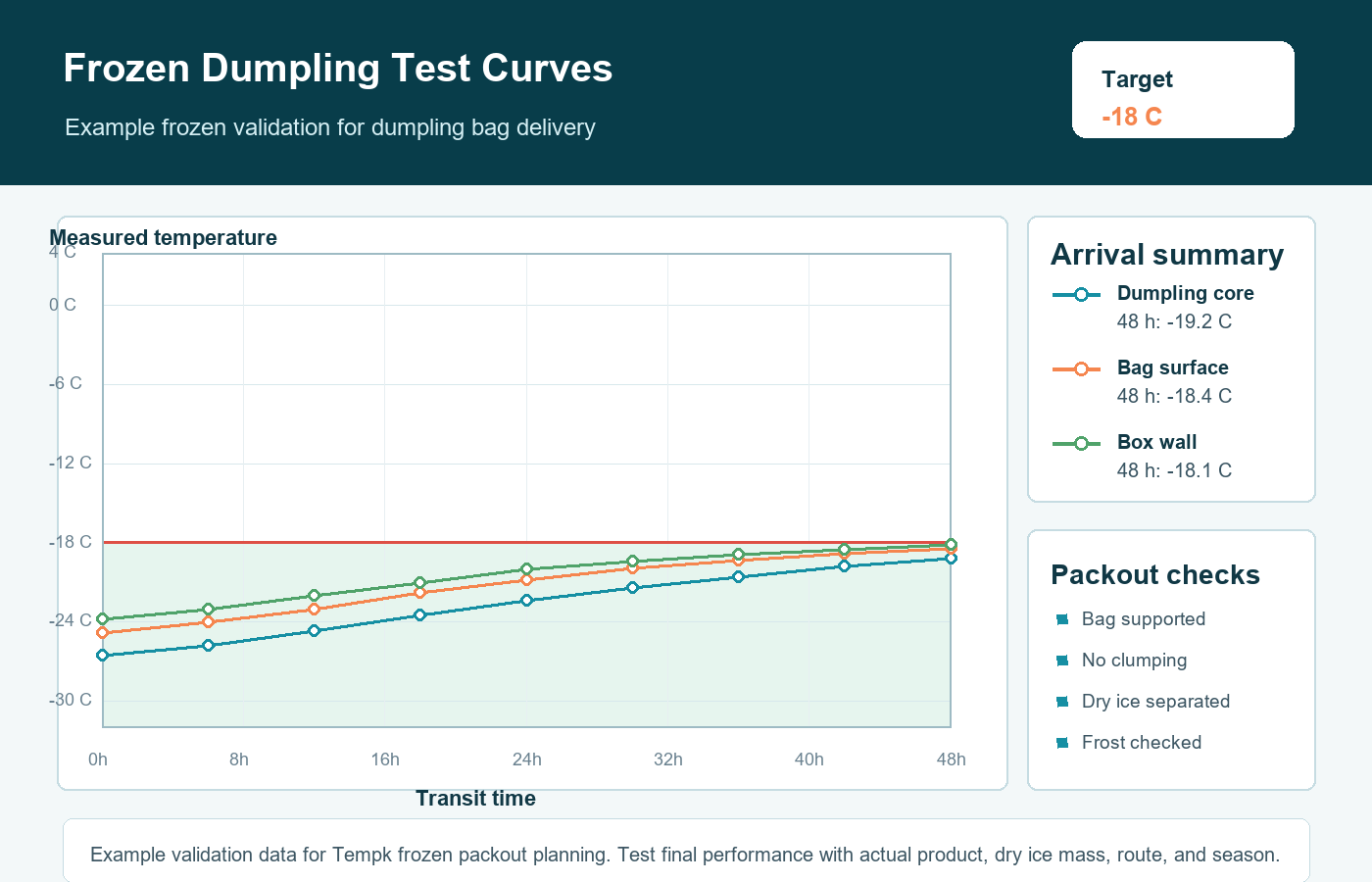

The dry ice amounts below are starting ranges for planning. Final packout should be validated with the exact payload, box size, carrier lane, season, and dry ice limit.
| Route condition | Temperature intent | Tempk packaging setup | Coolant planning range | Coolant position |
|---|---|---|---|---|
| Local delivery, 8-18 h | Frozen loose-piece quality | Insulated carton or EPP box, bag support, moisture barrier, separated frozen coolant or dry ice. | 1.0-1.8 kg dry ice for 1-5 kg payload, or validated frozen PCM/frozen gel for controlled lanes. | Side or top chamber with divider; prevent direct pressure on dumpling bags. |
| Overnight parcel, 18-36 h | -18 C route intent | Thicker insulation, dry ice pouch, inner bag protection, limited headspace. | 2.0-4.0 kg dry ice for 1-5 kg payload. | Perimeter dry ice separated from bags; keep bags supported to reduce puncture. |
| Hot lane or 36-48 h | Validated frozen lane | Higher insulation, stronger outer carton, reduced void space, route risk check. | 4.0-6.5 kg dry ice for 1-5 kg payload. | If clumping appears, reduce thaw exposure and improve coolant distribution. |
For a tighter estimate, start with the Dry Ice Calculator and review insulation choices in the Insulation Material Reference.
Packout sequence that protects frozen quality
Frozen food returns often come from a small layout failure: direct dry ice contact, too much headspace, a wet carton, or a product stack that shifts during handling.
1
Freeze and load quickly
Do not let dumplings sit warm during picking or kitting; a brief thaw can start clumping before transit begins.
2
Protect bags from puncture
Use inner bracing or a liner so hard coolant and box corners do not tear thin bags.
3
Separate extreme cold
Keep dry ice in a pouch or chamber with a divider so dumplings are not crushed by dry ice blocks.
4
Check loose-piece condition
At receiving, check temperature, clumps, wrapper cracks, bag frost, punctures, and dry ice remaining.
Common losses this packout is meant to prevent
Use these receiving checks when adjusting dry ice mass, insulation thickness, or internal separation.
Quality and packaging risks
- Clumped dumplings after partial thaw-refreeze.
- Wrapper cracks from pressure or direct dry ice contact.
- Bag punctures caused by hard coolant blocks or carton corners.
- Surface frost and poor customer presentation from vapor condensation.
Tools, components, and related routes
Use the product page for the handling logic, then size the first trial with tools and validate the real route.
Choose coolant behavior
Compare dry ice, frozen gel packs, and frozen PCM when choosing the first frozen packout.
Check route risk
Review pickup dwell, last-mile delay, receiving window, and summer routing before launch.
Need a frozen food packout checked before launch?
Share the frozen product type, payload weight, box size, route duration, ambient profile, carrier limits, and receiving checks. Tempk can help choose insulation, dry ice or frozen coolant placement, and validation steps.
