Influenza Vaccines
High-volume seasonal shipments need stable 2-8 C handling, fast clinic receiving, carton identity control, and protection from direct frozen gel contact.
Vaccines Cold Chain Packaging Solutions
Most routine vaccine parcel routes are planned around 2-8 C, but the real packaging decision is not only temperature. Vials and cartons must be protected from freezing, heat gain, label damage, coolant contact, long handoff time, and receiving delays.
Start with the vaccine risk, then choose the packout
For vaccine distribution, a stronger packout is not always a colder packout. Many refrigerated vaccines need a stable 2-8 C environment and should be kept away from direct frozen gel contact. Tempk builds the package around coolant conditioning, insulation thickness, vial/carton support, and the route evidence the receiver needs.
HPV Vaccines
Smaller, higher-value parcels need freeze protection, original-carton protection, label clarity, and light-aware handling during clinic replenishment.
Hepatitis B Vaccines
Adjuvanted vaccines need strong freeze prevention, conditioned coolant, vial support, and clear temperature evidence at receiving.
Typical vaccine route choices
| Product route | Temperature intent | Packaging setup | Preliminary coolant range | Check at receiving |
|---|---|---|---|---|
| Influenza vaccine clinic replenishment | 2-8 C, avoid freezing during seasonal volume peaks. | Insulated carton or EPP shipper, vial carton in center, conditioned gel packs or 5 C PCM separated by buffer board. | About 1.0-2.5 kg conditioned gel packs or PCM for a 1-4 L refrigerated payload on 8-24 h lanes. | Logger record, vial carton dryness, label clarity, coolant position, and time out of storage. |
| HPV vaccine parcel or clinic transfer | 2-8 C with strong freeze and light-aware handling. | Original cartons protected in a rigid inner tray, coolant around sides/top, no direct frozen surface on carton. | About 1.2-3.2 kg conditioned gel packs or PCM for 12-36 h lanes, adjusted by shipper size and season. | Minimum temperature, carton crush, label condition, light exposure during handling, and remaining coolant state. |
| Hepatitis B vaccine distribution | 2-8 C, with extra attention to freeze prevention. | Buffered center payload, conditioned coolant, absorbent or divider layer where condensation may affect cartons. | About 1.0-3.0 kg conditioned gel packs or PCM for 8-36 h lanes; avoid unconditioned frozen gel touching payload. | Any sub-zero reading, vial/carton wetness, product movement, and documented handoff time. |
These ranges are planning ranges for packaging discussion, not release criteria. Final packout should be confirmed with the vaccine label, route profile, payload size, temperature logger, and local handling requirements.

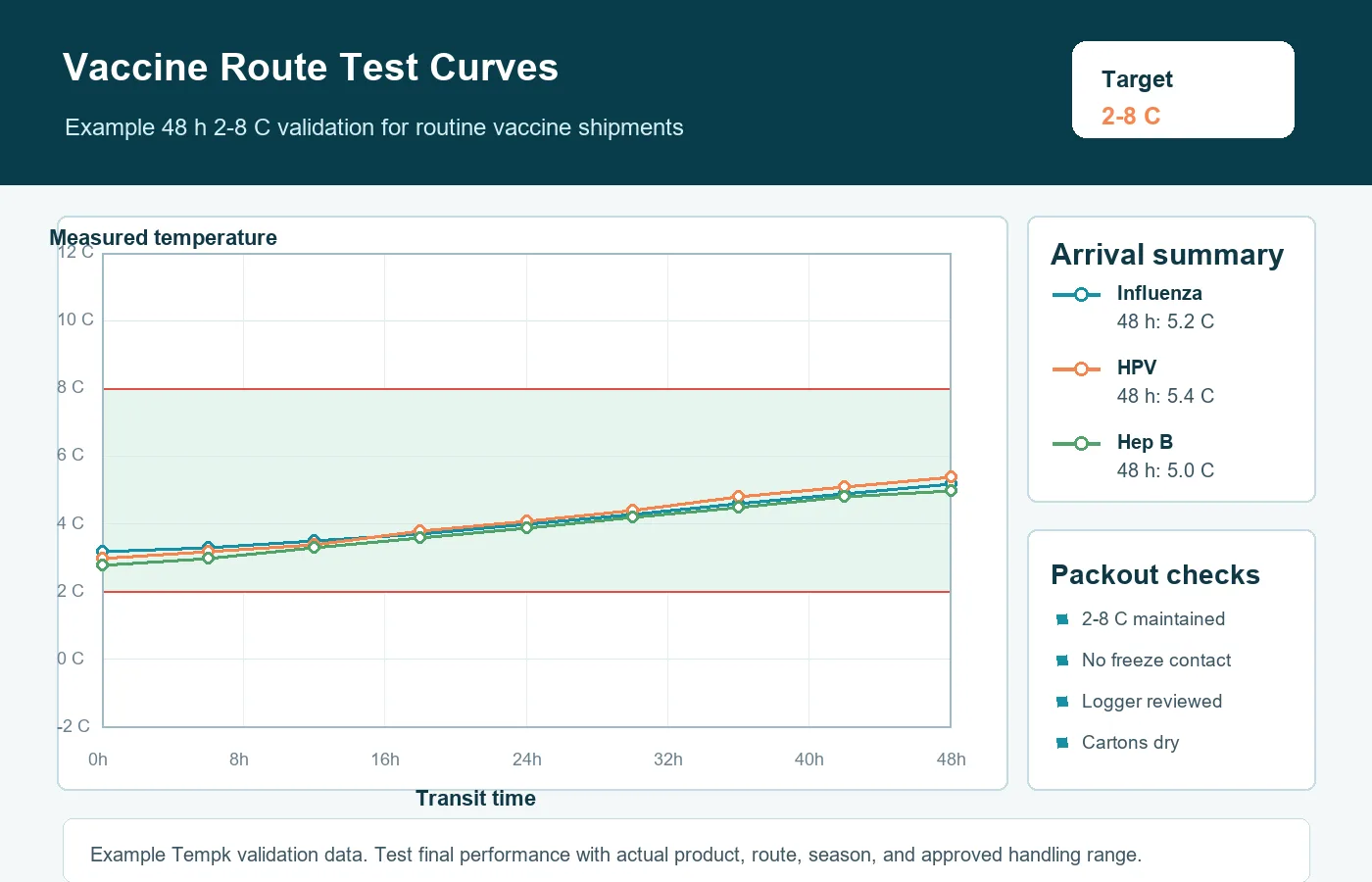

Route validation image
Use the validation curve together with product receiving checks. Vaccine packaging should be judged by temperature history, freeze avoidance, carton condition, and how easily the receiver can confirm the shipment.
More vaccine product guides
For products that do not need a dedicated solution page yet, these guides keep the solution hub useful without creating too many maintenance-heavy pages.
COVID-19 Vaccines
Use this article when the product is not one of the three dedicated vaccine solution pages, or when the lane needs a separate vaccine-specific packout note.
Rabies Vaccines
Use this article when the product is not one of the three dedicated vaccine solution pages, or when the lane needs a separate vaccine-specific packout note.
Pneumococcal Vaccines
Use this article when the product is not one of the three dedicated vaccine solution pages, or when the lane needs a separate vaccine-specific packout note.
Useful Tempk tools and packaging components
Use these pages when the lane, ambient temperature, or coolant selection needs a quick second check before testing.
Need a vaccine packout for a specific route?
Share the vaccine type, payload volume, shipper size, lane duration, ambient condition, and required receiving checks. Tempk can help compare insulation, coolant mass, coolant placement, and the validation plan before live shipment.
