Frozen Pizza
Protect crust shape, topping position, paperboard dryness, and stacked-carton pressure while keeping the pizza frozen.
Frozen food route planning
Frozen Foods Cold Chain Packaging Solutions
Frozen foods need more than a cold box. Pizza cartons can absorb moisture, ready meal trays can lose seal integrity, and dumplings can clump or crack after partial thaw. The packaging plan should hold a frozen route, separate dry ice or frozen coolant from the product, and protect the customer-facing pack.
Start with the frozen product format
Frozen food packouts should be designed around product structure, Feuchtigkeit im Karton, Stapeldruck, dry ice separation, and the receiving standard.
Frozen Ready Meals
Protect tray seals, sauce texture, sleeve labels, and mixed meal components from thaw-refreeze damage.
Frozen Dumplings
Prevent thawing, wrapper cracks, Verklumpung, and bag puncture while keeping dry ice or frozen coolant separated from the product.
Typical frozen food route choices
These ranges help choose the first Tempk packout for testing. Final dry ice or frozen coolant mass must be validated with the exact box, Nutzlast, Route, Jahreszeit, and carrier limit.
| Frozen route | Common target | Packaging structure | Coolant starting point | Watch first |
|---|---|---|---|---|
| Lokale Tiefkühllieferung, 8-18 H | Keep product frozen, typically planning against -18 C requirements. | EPP or insulated carton, Feuchtigkeitsbarriere, separated frozen coolant or dry ice, product bracing. | Um 1.0-2.0 kg dry ice for 1-5 kg Nutzlast, or validated frozen PCM/frozen gel for short controlled lanes. | Surface thaw, Karton nass, direct dry ice contact. |
| Overnight frozen parcel, 18-36 H | Frozen arrival with no visible thaw-refreeze damage. | Dickere Isolierung, dry ice chamber, vapor gap, leak-resistant inner wrap, route logger. | Um 2.0-4.5 kg dry ice for 1-5 kg Nutzlast. | Trockeneissublimation, carrier limits, package bulging, Etikettenzustand. |
| Hot season or delay-prone route, 36-48 H | Validated frozen lane with stronger receiving checks. | Höhere Isolierung, reduzierter Leerraum, protected product chamber, faster carrier service when needed. | Um 4.0-7.0 kg dry ice for 1-5 kg Nutzlast, adjusted by box size and carrier rules. | Last-mile thaw, pressure on retail packs, dry ice safety marking. |
For parcel programs with frozen DTC logic, sehen Frozen DTC Shipments. Für gefrorene Desserts, sehen Eiscreme & Frozen Desserts.

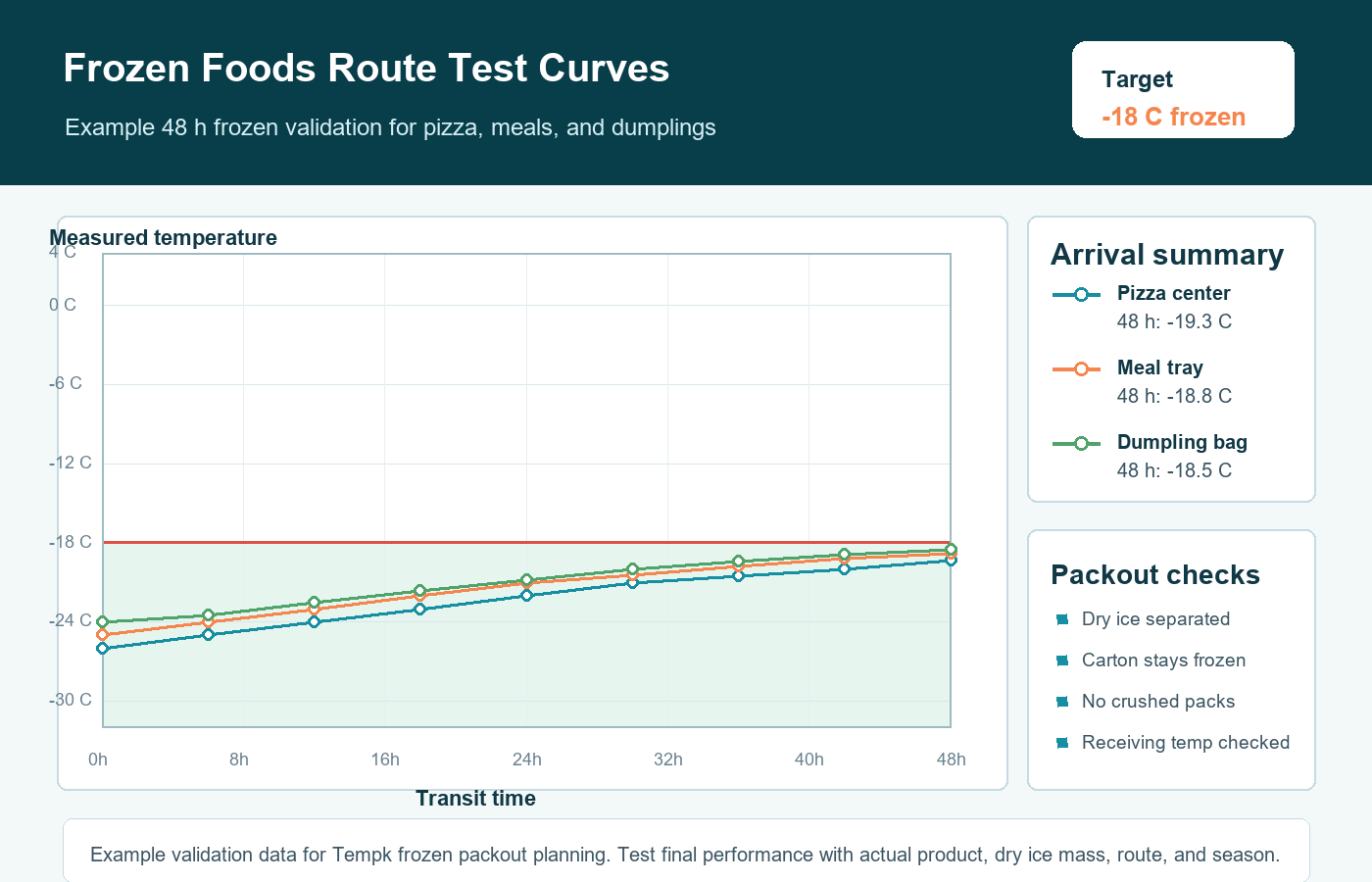

Validate temperature and pack condition together
A frozen route check should include product temperature, visible thaw, Kondensation, Kartontrockenheit, dry ice remaining, and whether coolant stayed separated from the food pack.
More frozen food packout guides
These guides support related frozen products without turning every product into a separate solution page.
Frozen Vegetables
Use this guide when the frozen product needs its own handling notes but does not need a full solution page.
Frozen Fruit
Use this guide when the frozen product needs its own handling notes but does not need a full solution page.
Frozen French Fries
Use this guide when the frozen product needs its own handling notes but does not need a full solution page.
Frozen Bakery Dough
Use this guide when the frozen product needs its own handling notes but does not need a full solution page.
Tools and packaging components
Use the tools to size a first frozen packout, then validate with the real payload and lane.
Need a frozen food packout checked before launch?
Share the frozen product type, Nutzlastgewicht, Kastengröße, Streckendauer, Umgebungsprofil, carrier limits, und Erhalt von Schecks. Tempk can help choose insulation, dry ice or frozen coolant placement, und Validierungsschritte.
